The Ravas iForks-32 Forklift Scale System is a fully wireless, precision weighing solution designed to integrate directly onto standard forklift trucks. Ideal for warehouse, logistics, and industrial environments, the iForks-32 delivers real-time weighing during material handling operations—eliminating the need to drive to a fixed scale and significantly boosting productivity.

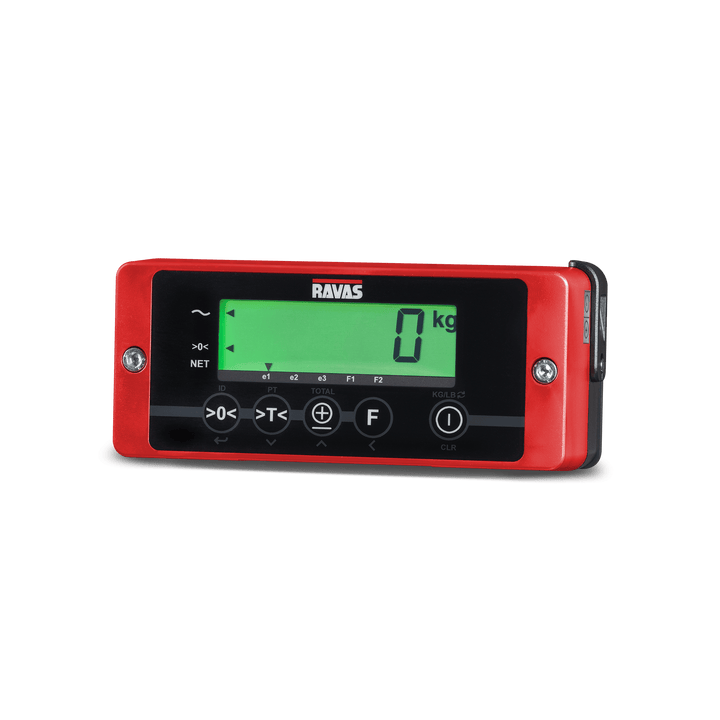

Each fork features built-in load cells powered by rechargeable lithium-ion battery packs, while the weight data is wirelessly transmitted to a compact 3200 Series indicator, which can be mounted inside the forklift cab. The system offers advanced weighing functions including net/gross mode, automatic/manual tare, piece counting, subtotal tracking, and optional printout capabilities. The forks automatically power on when movement is detected and shut off after inactivity to preserve battery life.
With NTEP/OIML trade certification available, and IP65 protection on the indicator, the iForks-32 is suitable for legal-for-trade applications and rugged environments. Integration with the RAVAS Indicator App enables wireless data logging, QR code displays, and label printing for enhanced workflow and traceability.
The system is available in three capacity variants to suit different lift trucks and applications:
-
5,000 lb
-
6,000 lb
-
10,000 lb
Specifications
Weighing Capacity (Variants):
Graduation (Resolution):
System Accuracy: ±0.1% of lifted load
Power Supply (Forks):

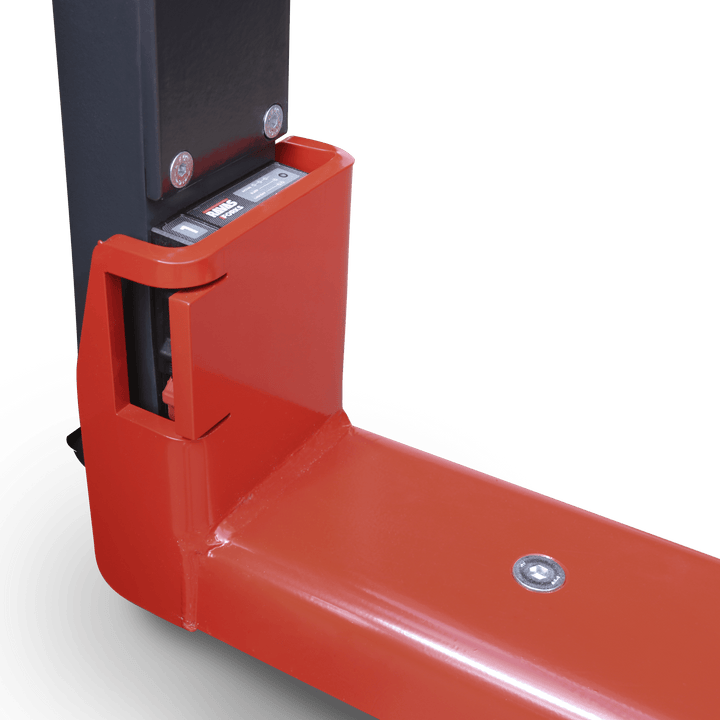

Rechargeable Li-ion 3.7V / 5.2Ah battery pack per fork
Battery life: up to 75 hours continuous use
Charger included
Power Supply (Indicator):
4 × AA batteries (approx. 50 hours of operation)
Optional: powered by forklift battery
Display:
Dual-color backlit LCD (green/red), 0.79 in digit height
5-digit readout
Controls:
4 function keys + on/off button
Wireless Communication:
Fully wireless signal between load cells and indicator
Functions:
-
Manual and automatic zero
-
Gross/net toggle
-
Subtotal with sequence ID
-
Piece counting
-
Sleep mode and auto wake
Tip load warning and logging
-
Internal clock with date/time
-
RS232 printer connection
-
WiFi/Bluetooth optional data transfer
-
Compatible with RAVAS Indicator App
Protection Rating:
IP65 (indicator)
Load cell housing rated to IP65/IP67
Mounting & Fitment:
Fits standard ITA fork carriages
Available in multiple fork sizes and carriage types
Fork Dimensions (Standard - 5,500 lb version):
Legal for Trade:
Available in NTEP (OIML Class III) certified version
Additional Options:
Integration with RAVAS RDC or RIS software
