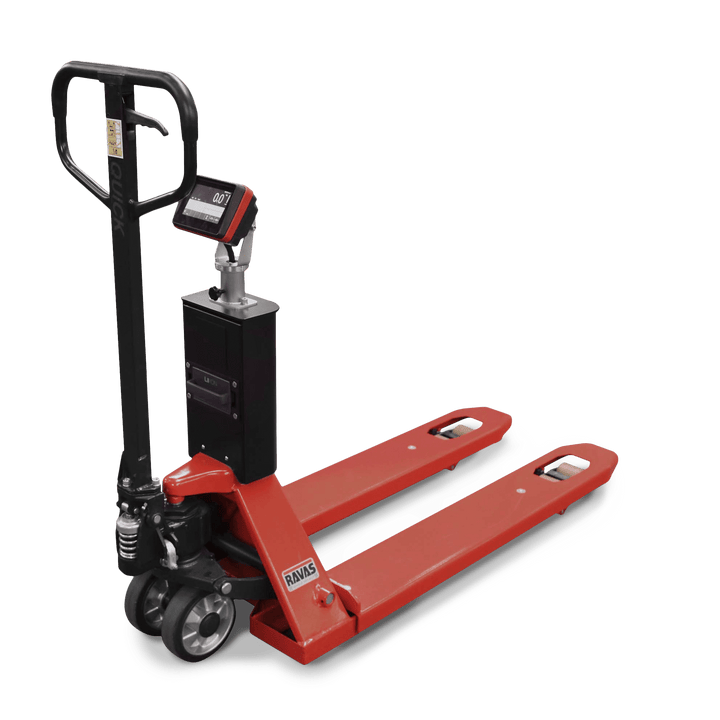

The Ravas 5200 Pallet Jack Scale is a professional-grade mobile weighing system, designed for complex weighing applications in warehousing, logistics, and industrial production. Featuring a high-resolution digital indicator with a full keypad and customizable interface, the 5200 provides advanced functionality including automatic and manual tare, subtotal memory, ID code entry, piece counting, setpoint control, and USB or WiFi data export.
The onboard lithium-ion battery powers up to 25 hours of continuous operation, and the system features a user-replaceable pack and automatic low-battery shutdown. The IP65-rated indicator ensures durability against dust and moisture, while the system's precision load cells ensure consistent weighing accuracy within 0.1% tolerance.
The 5200 supports real-time data logging and export through the RAVAS Indicator App, allowing for wireless transmission, QR code display, label printing, and optional integration with RAVAS RDC software. Alibi memory, user-set parameters, and programmable button functions make the Ravas 5200 ideal for operations requiring traceability, automation, and flexibility in mobile weighing.
Specifications
Weighing Capacity: 4,400 lb (optional: 5,500 lb or 6,600 lb)
Graduation (Multirange):
0–440 lb: 0.5 lb
440–1,100 lb: 1.0 lb
1,100–4,400 lb: 2.0 lb
Maximum Tolerance: ±0.1% of the applied load

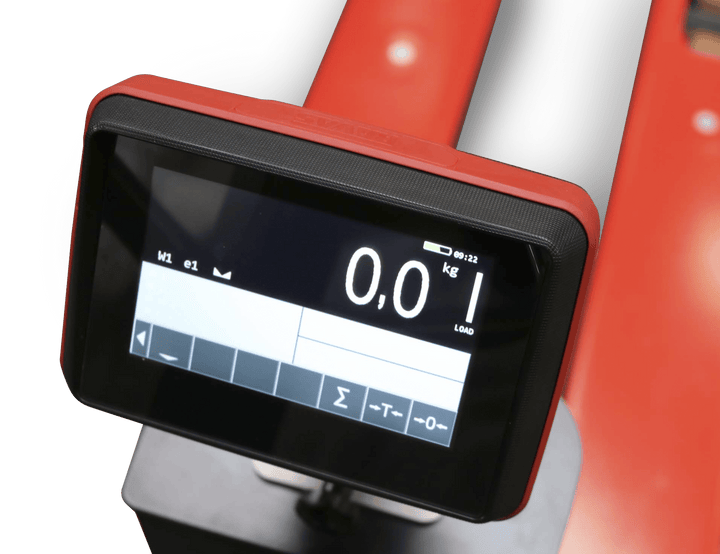

Display: 5” full-color touchscreen with 1 in high digits
Power Supply: 14.8V / 5Ah rechargeable Li-ion battery pack
Battery Life: Up to 25 hours (50 hours with sleep mode)
Charging: Includes 14.8V Li-ion charger
Power Consumption: 12V, 160 mA
Load Cell Protection: IP67
Indicator Protection: IP65
Indicator Mounting: Rotating and tiltable for multi-angle visibility
Key Functions: Automatic/manual zero, tare memory (10 presets), subtotal registers (10), net/gross toggle, ID-code entry, piece counting
Data Output: USB (for stick or barcode scanner), RS232, WiFi-compatible
Connectivity: Supports RAVAS Indicator App, optional Bluetooth data transfer
Unit Weight: Approx. 275 lb
Hydraulic Pump: Quick lift
Steering Wheels: Rubber
Load Rollers: Tandem polyurethane
Color: Red (RAL 3000), epoxy painted
Fork Dimensions (Standard):
Length: 45.3 in
Width: 7.1 in
Minimum Height: 3.5 in
Maximum Height: 8.1 in
Overall Dimensions:
Width Over Forks: 21.9 in
Overall Length: 62 in
Chassis Width: 21.3 in
Chassis Height (min): 15.9 in
Height to Top of Indicator: 37.4 in (±0.08 in)
Legal for Trade: OIML Class III version available
