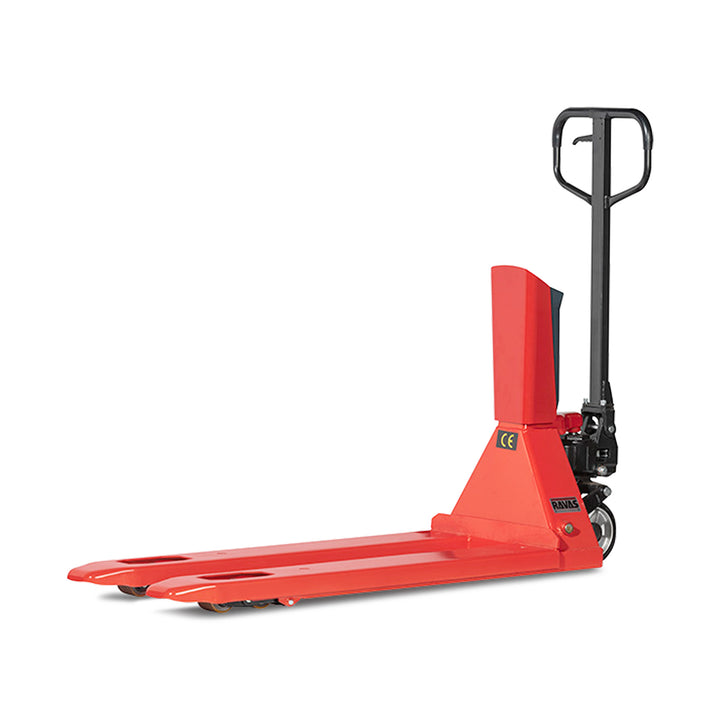

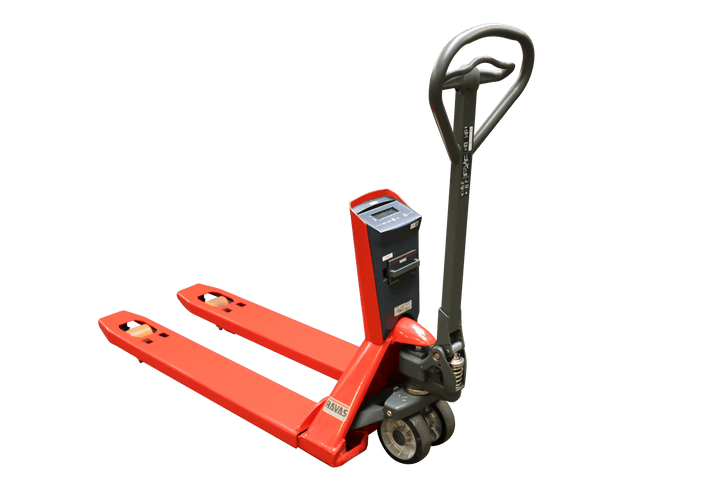

The Ravas 3200 Pallet Jack Scale is a high-performance mobile weighing solution engineered for demanding warehouse, manufacturing, and logistics operations. Featuring an integrated digital scale with industrial-grade load cells, it enables accurate, real-time weight measurements during material handling—eliminating the need to transport loads to a stationary scale.
The robust Ravas 320 system supports both automatic and manual tare functions, net/gross weight modes, and optional ID code input and printout functionality. The user-friendly display includes multi-range weight indicators, a sleep mode, overload protection, and a built-in low battery warning. The rechargeable battery system offers up to 75 hours of operational life (Li-ion) and is hot-swappable to minimize downtime.
With IP65-rated protection, the system withstands harsh conditions including dust and spray, making it suitable for industrial environments. Optional connectivity via the RAVAS Indicator App enables wireless data logging, QR code displays, and label printing, enhancing digital workflow integration. The unit is compatible with optional printers and memory modules, and can store detailed weighing records with alibi memory for traceability.
Specifications
Weighing Capacity: 4,400 lb (optional: 5,500 lb or 6,600 lb)
Graduation (Multirange):
0–440 lb: 0.5 lb
440–1,100 lb: 1.0 lb
1,100–4,400 lb: 2.0 lb
Maximum Tolerance: ±0.1% of the lifted load

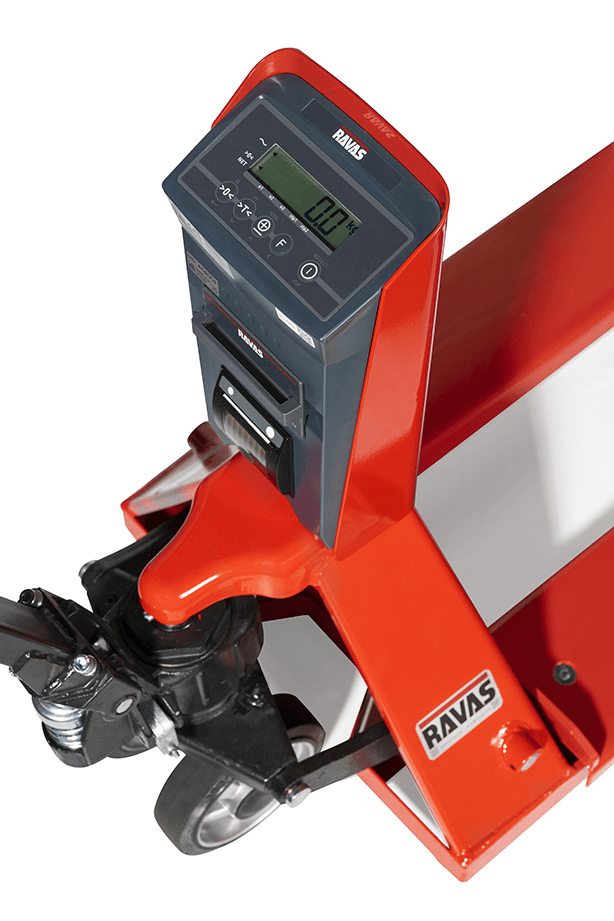

Display: LCD, dual color, 0.79 in digit height, with backlight
Keypad: 5 function keys plus on/off key
Battery: 14.8V / 5Ah rechargeable Li-ion, user-replaceable
Battery Life: Up to 75 hours of continuous use
Charging Time: Approximately 6 hours
Charger Input: 120V AC input / 14.8V DC – 1A output
Load Cell Protection: Rated IP67 (dustproof and water-resistant)
Indicator Protection: Rated IP65 (dust-tight, protected against water jets)
Unit Weight: Approx. 265 lb
Hydraulic Pump: Quick-lift manual pump
Steering Wheels: Rubber
Load Rollers: Tandem polyurethane wheels
Color: Red (RAL 3000), epoxy powder-coated finish
Fork Dimensions (Standard):
Length: 45.3 in
Width: 6.7 in
Minimum Fork Height: 3.5 in
Maximum Fork Height: 7.1 in
Width Over Forks: 21.3 in
Height to Top of Indicator: 31.5 in (±0.1 in)
Legal for Trade: Available in NTEP-certified version (Class III)
