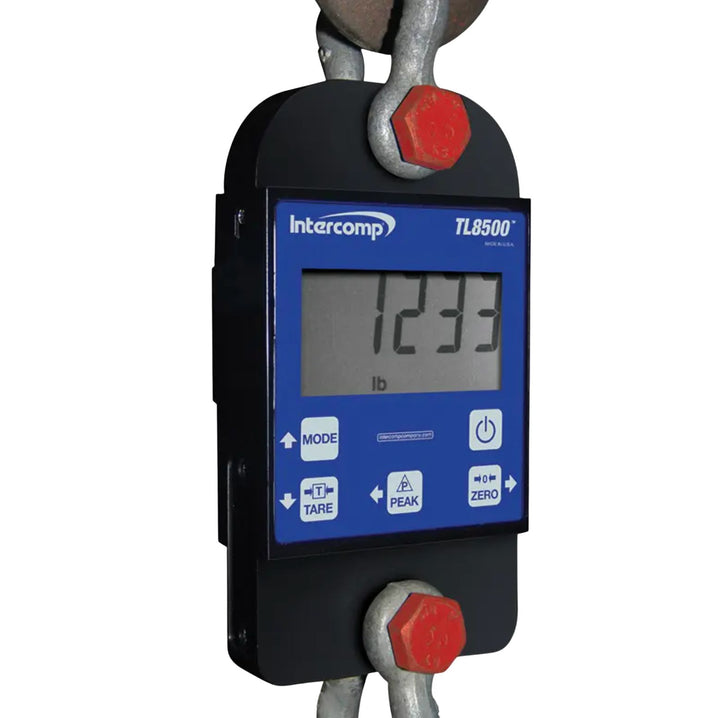

The Intercomp TL8500 Tension Link Scale is a rugged, high-capacity digital dynamometer engineered for overhead lifting, force measurement, and load monitoring applications. With models ranging from 1,000 to 160,000 lb, the TL8500 is Legal for Trade (NTEP Certified) and designed to deliver precise, verifiable measurements in demanding industrial and commercial environments. Its lightweight, high-strength aluminum construction and shock-mounted electronics provide both durability and portability, making it suitable for crane operations, proof load testing, and tension monitoring where safety and accuracy are critical.
Built with operator convenience in mind, the TL8500 features a bright LED display that can be read from a distance, even in low-light or outdoor conditions. The scale includes a rechargeable battery pack that provides hundreds of hours of operation, reducing downtime for recharging. A standard wireless remote control gives operators the ability to zero, tare, and capture peak loads safely from the ground — eliminating the need to access suspended equipment. The TL8500 is designed to work seamlessly with Crosby shackles, which must be purchased separately by capacity range. This ensures customers can select shackles tailored to their lifting requirements while keeping the base scale portable.
Key Features & Benefits
– Capacity options from 1,000 to 160,000 lb to suit a wide range of lifting and testing applications
– Legal for Trade (NTEP Certified), enabling use in regulated commercial environments
– Accuracy of ±0.1% ensures confidence in every measurement and reduces costly disputes
– Bright LED display remains visible in warehouses, yards, and outdoor job sites
– Wireless remote control allows safe, ground-level operation without approaching suspended loads
– Rechargeable battery pack with long operating life minimizes downtime for charging
– Lightweight, high-strength aluminum housing and shock-mounted electronics withstand harsh conditions while remaining portable
– Designed for use with Crosby shackles (sold separately) for secure and reliable rigging
– Optional wireless handheld indicators (HH400/HH60) provide advanced data capture, logging, and remote monitoring
– Functions include Zero, Tare, Peak Hold, lb/kg unit switching, Auto-Off, and Auto-Zero Tracking to support diverse workflows
– Wide operating temperature range supports both indoor and outdoor industrial use
Technical Specifications
| Specification |
Value |
| Capacity Options |
1,000 lb, 2,500 lb, 5,000 lb, 10,000 lb, 25,000 lb, 50,000 lb, 100,000 lb, 160,000 lb |
| Graduation (by model) |
0.5 lb (1,000 lb), 1 lb (2,500 lb), 2 lb (5,000 lb), 5 lb (10,000 lb), 10 lb (25,000 lb), 20 lb (50,000 lb), 50 lb (100,000 lb), 100 lb (160,000 lb) |
| Certification |
NTEP Certified (Legal for Trade), CoC 97-135A2 |
| Accuracy |
±0.1% of applied load |
| Display |
High-visibility LED display, viewable at distance and in low-light |
| Power Supply |
Rechargeable battery pack |
| Battery Life |
Hundreds of hours of continuous use per charge |
| Remote Control |
Standard wireless remote (zero, tare, peak hold, functions) |
| Functions |
Zero, Tare, Peak Hold, Unit Switching (lb/kg), Auto-Off, Auto-Zero Tracking |
| Optional Outputs |
Wireless handheld indicators (HH400, HH60); RS232/USB connectivity available |
| Protection Rating |
NEMA 4 / IP65 equivalent housing |
| Product Weight |
Varies by capacity model (lightweight aluminum alloy construction) |
| Construction |
High-strength aluminum housing; shock-mounted electronics |
| Rigging Hardware |
Compatible with Crosby shackles (sold separately, matched to capacity) |
| Operating Environment |
–10 °C to +50 °C (14–122 °F); indoor/outdoor industrial use |
Add Ons
HH400 (WH) RFX Indicator (+$995.00) – The most popular upgrade for the TL8500, chosen by the majority of customers. The HH400 delivers real-time wireless readings up to 300 ft away, giving operators the freedom to monitor loads from a safe distance. Its rugged, waterproof design makes it ideal for harsh environments, while the included batteries, lanyard, and protective case ensure it’s ready for the field. By reducing manual monitoring, improving safety, and speeding up every weigh-in, the HH400 isn’t just an accessory — it’s the tool that unlocks the TL8500’s full potential. For most users, this is the add-on that turns a good system into a great one.
Direct Power Option w/RS232 & Set Points (+$195.00) – Ensures continuous power supply and enables direct data connectivity. A must-have in high-usage environments where downtime is costly.
Cables with Connectors (15’, 25’, 50’) (+$225.00 / +$275.00 / +$340.00) – Connect your TL8500 over the distance you need. Reliable communication lines that streamline data transfer and integrate seamlessly with the Direct Power Option.
Case for Tension Links (to 50K) (+$299.00) – Protects your TL8500 during transport and storage. Durable construction ensures your investment is safe and ready for use in the field.
Scale Case 11" × 15" × 14" with Dividers (+$249.00) – Keep all your accessories neatly organized and protected. Designed with dividers for maximum convenience when transporting multiple components.
Certificate of Calibration (+$75.00) – Provides documented proof of accuracy, ensuring compliance and avoiding costly audit issues. A low-cost safeguard recommended for all regulated industries.
Shackle Pairs (Optional)
Shackles are optional — you may already own suitable shackles or source them elsewhere. However, ordering through us guarantees that you receive Intercomp-rated, load-tested shackles matched to your system’s capacity. This gives you complete peace of mind, saves sourcing time, and ensures safe, compliant operation.
Shackle Pair for Tension Links (to 5K) (+$99.00) – Secure rigging for low-capacity loads.
Shackle Pair for Tension Links (to 10K) (+$195.00) – Rugged strength for mid-capacity load testing.
Shackle Pair for Tension Links (to 25K) (+$605.00) – High-strength rigging for demanding lifts.
Shackle Pair for Tension Links (to 50K) (+$895.00) – Rated hardware for safe measurement at higher capacities.
Shackle Pair for Tension Links (to 100K) (+$2,925.00) – Certified shackles for large-scale applications.
Shackle Pair for Tension Links (to 160K) (+$3,695.00) – Heavy-duty shackles for extreme load testing.
