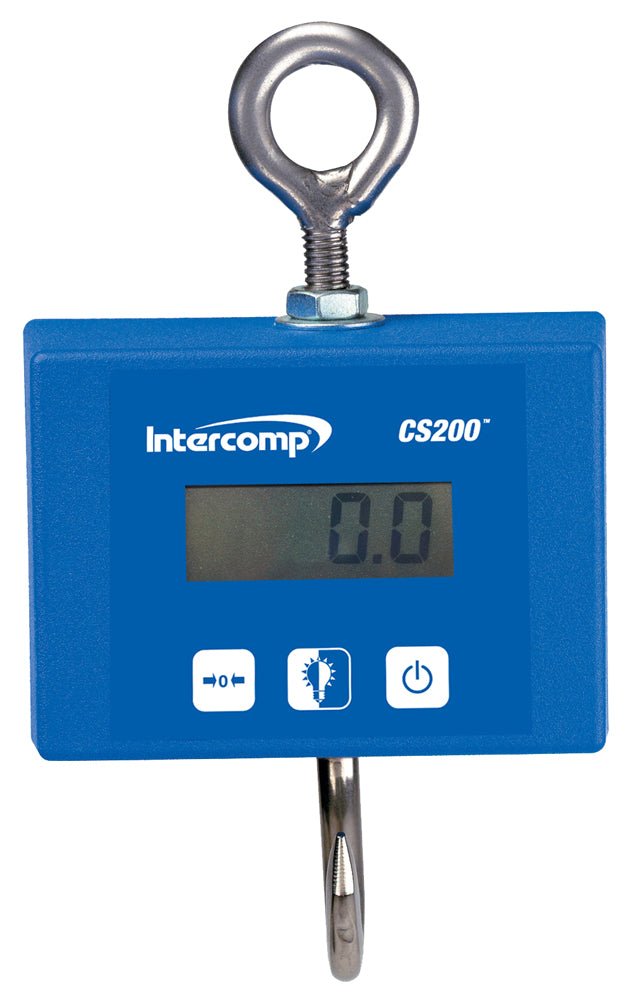

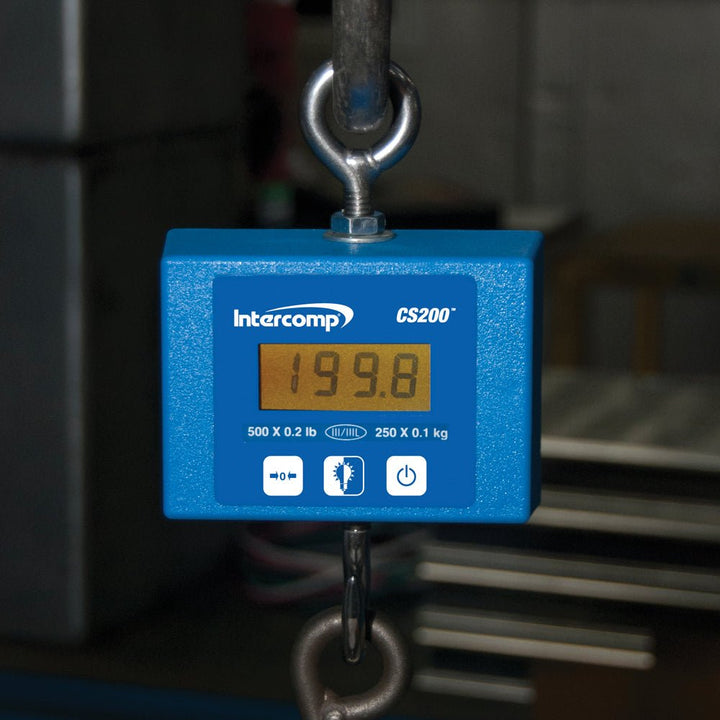

The Intercomp CS200 Hanging Crane Scale is a rugged, portable weighing solution for overhead lifting, crane, and material-handling work. It covers 25–500 lb across five models with fine graduations down to 0.01 lb, giving field teams quick, dependable readings without hauling bulky gear.
The CS200 provides ±0.1% accuracy, long-lasting battery life from a standard 9V, and simple one-button zeroing. Operators can switch between lb/kg units, capture peak loads, enable Auto-Zero Tracking, and use the optional serial output for data logging or printing.
- Five capacity options: 25, 50, 100, 250, 500 lb
- Graduations by model: 0.01–0.2 lb
- Accuracy: ±0.1% of applied load (or ±1 graduation)
- Lightweight body, approx. 1.1–1.5 lb depending on capacity
- 9V battery power, up to 50 hours (about 15 hours with backlight)
- Large 4-digit LCD with backlight
- Functions: Zero, lb/kg units, Peak Hold, Auto-Zero Tracking (AZT), Auto-Off
- Optional serial output (print/continuous; selectable baud rates)
- Operating range: –10 °C to +50 °C (15–122 °F); 10–95% RH non-condensing
- Designed for safe overhead use when following proper rigging and operating practices
Technical Specifications
| Specification |
Value |
| Capacity Options |
25 lb, 50 lb, 100 lb, 250 lb, 500 lb |
| Graduation (by model) |
0.01 lb (25 lb), 0.02 lb (50 lb), 0.05 lb (100 lb), 0.1 lb (250 lb), 0.2 lb (500 lb) |
| Accuracy |
±0.1% of applied load or ±1 graduation |
| Display |
4-digit LCD with backlight |
| Power Supply |
9V alkaline battery, approx. 50 hours (15 hours with backlight) |
| Functions |
Zero, lb/kg units, Peak Hold, Auto-Zero Tracking (AZT), Auto-Off |
| Optional Output |
RS232 serial output, selectable print modes and baud rates |
| Operating Temperature |
–10 °C to +50 °C (15–122 °F) |
| Operating Humidity |
10–95% RH, non-condensing |
| Product Weight |
Approx. 1.1–1.5 lb depending on model capacity |
| Construction |
Lightweight, compact housing with rugged hooks for overhead use |
Add Ons
Certificate of Calibration (+$75.00) – Provides documented proof of your scale’s accuracy, ensuring the CS200 meets compliance requirements and is audit-ready from day one. This low-cost safeguard helps protect your business against failed inspections, downtime, and costly penalties.
Shipping & Delivery
Delivery Method
This product ships via UPS or FedEx Ground. These services are used for products that can safely be delivered by standard parcel carriers.
Order Processing
All standard shipping orders are processed and dispatched within 1–2 business days after payment is confirmed.
Delivery Timeframe
Delivery typically occurs within 1–10 business days.
Shipping Charges
The exact shipping charge for this product will always be shown at checkout before you confirm your order.
Tracking
Once your order has shipped, you will receive an email confirmation with tracking details so you can monitor your shipment in real time.
Important Notes
Standard shipping refers to transit time only and does not include the 1–2 business day order processing period. Products requiring calibration certificates or special preparation may need additional time for fulfillment.
Policy Reference
This information applies specifically to the product shown on this page. For a complete overview of shipping and delivery practices across all product categories, please refer to the company-wide Shipping & Delivery Policy available through the link in the website footer.
Returns
The following Intercomp-specific return terms apply in addition to Titan Scale USA’s standard policies. Where there is a difference, the Intercomp-specific terms listed here will take precedence.
Titan Scale USA is an authorized dealer of Intercomp products. As the retailer, we facilitate your purchase and provide customer support, but the full manufacturer’s return policy is provided directly by Intercomp. This ensures you receive clear and consistent terms that reflect the manufacturer’s standards.
Standard Intercomp equipment may be returned within thirty (30) days of delivery, provided that the product is unused, in substantially the same condition as when shipped, and accompanied by a Return to Manufacturer Authorization (RMA) number. Returns without an RMA number will not be accepted. Customers are responsible for return freight charges.
Intercomp applies a restocking charge on all returns. The minimum restocking fee is fifteen percent (15%) of the purchase price, with higher fees possible if the equipment has been damaged, incorrectly specified, or requires significant work to restore it to resale condition.
No returns are accepted for special order, custom, unusual, or modified items. In addition, any partial or complete order that is cancelled prior to delivery is subject to a minimum cancellation fee of fifteen percent (15%).
To initiate a return, customers must first contact Titan Scale USA for assistance. We will help you coordinate directly with Intercomp’s service department to obtain the required RMA number and provide instructions for preparing the shipment. All returns must include the RMA documentation and have the RMA number clearly marked on the package.
Warranty
The following Intercomp-specific warranty terms apply in addition to Titan Scale USA’s standard policies. Where there is a difference, the Intercomp-specific terms listed here will take precedence.
Titan Scale USA is an authorized dealer of Intercomp products. As the retailer, we facilitate your purchase and provide customer support, but the full manufacturer’s warranty coverage comes directly from Intercomp. This ensures you receive the highest level of protection and service, backed by the original manufacturer.
Intercomp provides a limited warranty that covers defects in materials and workmanship for a period of one year from the date of shipment. For non-electronic products, the warranty period is ninety (90) days from the date of shipment.
This warranty is limited exclusively to the repair, replacement, or credit of defective original equipment manufactured or supplied by Intercomp. Coverage does not extend to labor, materials, or service charges involved in the removal or installation of equipment. The warranty applies only to the dealer’s initial customer and is not transferable in the event of resale.
Warranty coverage will not apply to equipment that has been repaired or modified without authorization from Intercomp, has been subject to misuse, negligent handling, improper installation, accident, fire, water damage, or other acts of God, has serial numbers that have been altered, defaced, or removed, or has not been installed or used in accordance with Intercomp’s recommendations and specifications.
To obtain warranty service, customers must first contact Titan Scale USA for assistance. We will help you coordinate directly with Intercomp to receive a Return to Manufacturer Authorization (RMA) number. Equipment must then be returned freight prepaid to Intercomp’s service facility in Minneapolis, Minnesota. Warranty repair of product by an authorized dealer, when approved in advance, will be reimbursed at a prevailing rate established by Intercomp.
Intercomp reserves the right to incorporate design or material improvements in its products without obligation to retrofit previously manufactured equipment.
