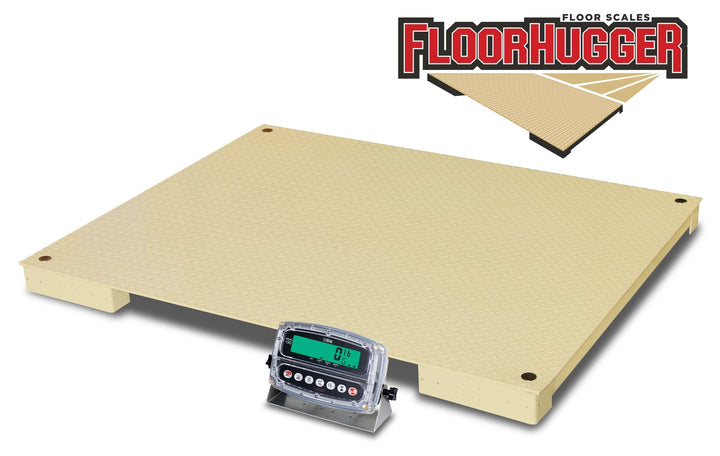

The Cardinal FloorHugger Extra Heavy-Duty Floor Scale is engineered for demanding industrial environments requiring robust and reliable weighing solutions. With its extra steel-reinforced construction, this scale offers superior deck strength, ensuring durability under heavy loads.
Designed for versatility, it features top-side access to self-leveling and adjustable height load cells, facilitating easy maintenance and calibration. The checkered stainless steel or mild steel decks provide enhanced traction, making it ideal for applications in warehouses, manufacturing plants, and shipping centers.
Key Features
- Capacity Options: 5,000 lb x 1 lb or 10,000 lb x 2 lb
- Platform Sizes: 3x3 ft, 4x4 ft, 5x4 ft, 5x5 ft, 6x4 ft, 6x5 ft, 7x5 ft, and 8x4 ft
- Construction: Extra steel-reinforced heavy-duty design for superior deck strength

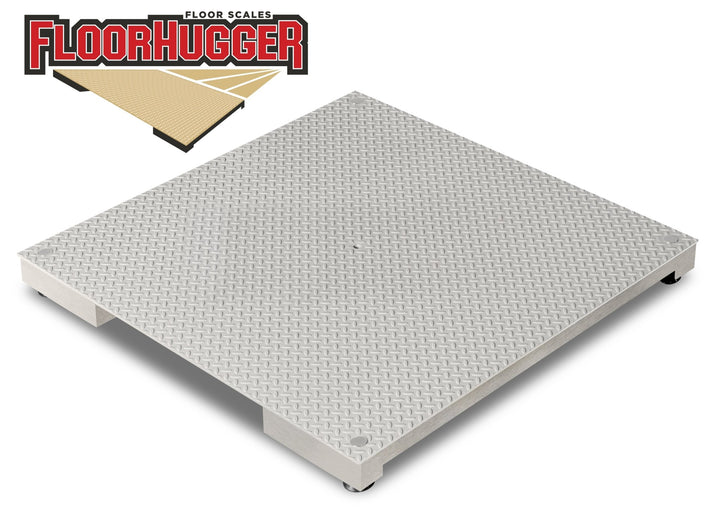

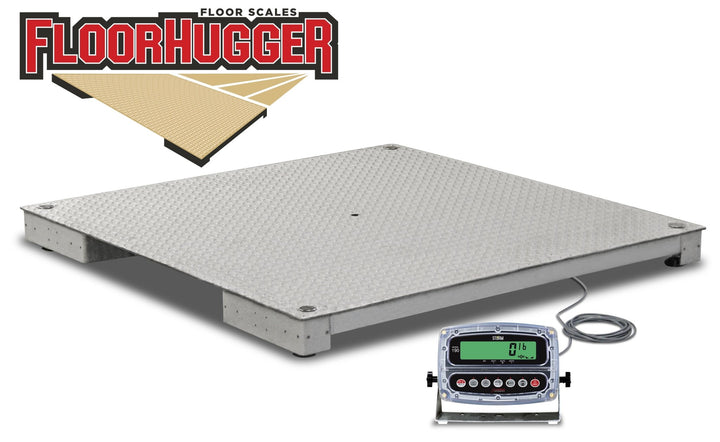

- Deck Material: Checkered stainless steel or mild steel for enhanced traction

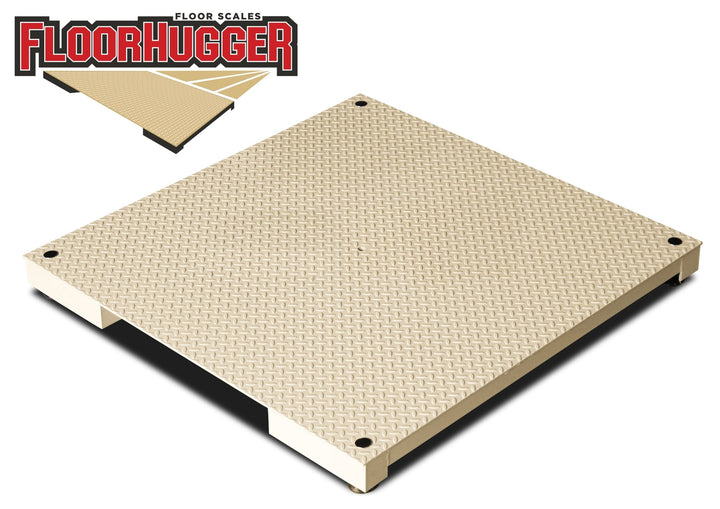

- Finish: Mild steel models feature a baked-on anti-corrosion polyester tan paint
- Load Cells: Stainless steel hermetically-sealed waterproof load cells
- Design: Low-profile with top-side access to load cells

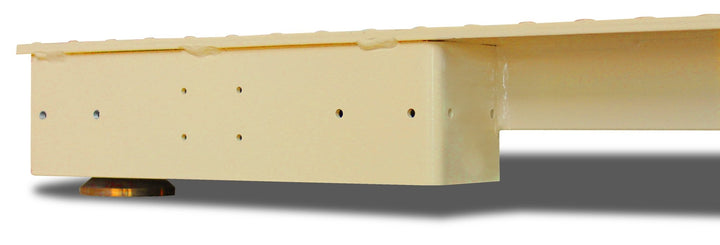

- Protection: Channel construction guards load cells, wiring, and junction box against forklift damage
- Optional Accessories: Checkered deck ramps, pit frames, base anchors, and digital weight indicators
Technical Specifications
|
Specification
|
Details
|
|
Capacities
|
5,000 lb x 1 lb or 10,000 lb x 2 lb
|
|
Platform Sizes
|
3x3 ft, 4x4 ft, 5x4 ft, 5x5 ft, 6x4 ft, 6x5 ft, 7x5 ft, 8x4 ft
|
|
Platform Height
|
3.8 inches
|
|
Deck Material
|
Checkered stainless steel or mild steel
|
|
Finish (Mild Steel)
|
Baked-on anti-corrosion polyester tan paint
|
|
Load Cells
|
Stainless steel hermetically-sealed waterproof
|
|
Design
|
Low-profile with top-side access to load cells
|
|
Protection
|
Channel construction guards internal components
|
|
Optional Accessories
|
Checkered deck ramps, pit frames, base anchors, digital weight indicators
|
Shipping & Delivery
Orders are typically processed within 1–2 business days. Standard shipping timelines range from 5–10 business days depending on the destination and product configuration. For larger freight shipments, delivery times may vary slightly based on carrier availability and location. Tracking information will be provided as soon as your order ships.
If you have questions about delivery timeframes or need assistance selecting the right configuration for your needs, our team is always available to help — feel free to call us for advice or additional information.
Returns
This return policy applies specifically to products manufactured by Cardinal Scale and is an extension of our general Return Policy. Please review the Cardinal-specific terms below.
Step 1: Contact Titan Scale USA
All return requests for Cardinal products must begin by contacting Titan Scale USA. Please do not contact Cardinal Scale directly unless instructed.
To initiate a return, contact us at:
Please include:
-
Your original order number
-
A brief explanation of the reason for return
-
Photos if the item is damaged or defective
We will guide you through the next steps and coordinate with Cardinal Scale if a return is approved.
Return Authorization (RA)
If the return is approved, we will request a Return Authorization (RA) number from Cardinal Scale on your behalf. This RA number:
-
Must be clearly written on the outside of the return packaging, or
-
Affixed using the RA shipping label provided in the confirmation email
All returned items must:
Restocking Fees
-
A 25% restocking fee applies to all non-defective returns
-
A 10% restocking fee may apply if a re-order of greater value is placed at the time the RA is issued
-
Items must be returned in good condition and appropriately packaged to qualify for the reduced fee
Additional Notes
-
Returns made based on technical support recommendations are still subject to standard packaging and restocking requirements
-
Whether an item qualifies as defective due to a manufacturing issue is determined solely by Cardinal Scale’s Quality Assurance team
For any questions or to begin a return, please contact Titan Scale USA using the details above.
Warranty
Cardinal Scale – Limited Manufacturer Warranty
At Titan Scale USA, we stand behind the quality of every product we sell. However, please note that warranty coverage is provided directly by the manufacturer, in this case Cardinal Scale Manufacturing Company, and is subject to their specific terms and conditions outlined below.
If you purchased a Cardinal Scale product from us, you are covered under Cardinal’s manufacturer warranty, not a Titan Scale USA warranty.
Warranty Overview
Cardinal Scale Manufacturing Company warrants its products against defects in materials and workmanship. Coverage terms vary depending on the product type.
Key Conditions of Warranty Coverage
This warranty applies only to the original purchaser of the product. The warranty period begins on the date of shipment from Cardinal Scale. Equipment must be installed and continuously maintained by an authorized Cardinal or Belt-Way dealer. It must also be properly grounded in accordance with Cardinal’s specifications.
The warranty becomes void if the equipment has been tampered with, defaced, or modified without Cardinal’s written approval, or if the serial number is missing, altered, or illegible.
Damage occurring during transit is not covered by the warranty. Claims for transit damage must be filed directly with the shipping carrier.
Warranty Coverage by Product Type
Hydraulic load cells include a lifetime limited warranty for damage caused by water, lightning, and voltage surges. This applies only to the hydraulic load cell structure itself and does not include pressure transducers, rubber seals, o-rings, or wiring. These load cells also carry a 10-year prorated warranty.
Scale structures are covered by a 1-year warranty.
Components constructed from stainless steel are covered under warranty.
Devices must be rated NEMA 4 or higher, or have an equivalent IP rating, to qualify for coverage.
For PSC models, warranty coverage applies only to agricultural installations on farms of up to 3,000 acres. LSC models are not subject to this acreage limitation.
Load cell kits must be installed in strict accordance with Cardinal Scale’s installation instructions. Failure to follow these instructions will void the warranty.
Warranty Exclusions
The following items and conditions are not covered under this warranty:
Consumables and expendable parts, or any product damage caused by abuse, improper voltage, overloading, theft, fire, water, prolonged storage or exposure while in the purchaser’s possession, or acts of God.
Peripheral equipment not manufactured by Cardinal is not covered. These items are typically covered by the original equipment manufacturer’s warranty.
Consequential damages, such as loss of profit, delays, or additional expenses, are not covered. Cardinal’s liability is limited to the specific terms of this warranty.
This warranty replaces all other express or implied warranties, including warranties of merchantability or fitness for a particular purpose. It applies only to products installed within the 48 contiguous United States and Canada.
Paint and surface coatings are excluded due to environmental variability.
Do not cut load cell cables before returning a product for warranty or credit, as doing so will void the warranty.
Software is warranted only for performing the functions described in the software manual or Cardinal’s proposal. The software warranty does not cover hardware. Any hardware-related coverage is provided by the hardware vendor.
The software warranty does not apply to integration issues involving third-party hardware.
Software upgrades are not included unless purchased separately.
