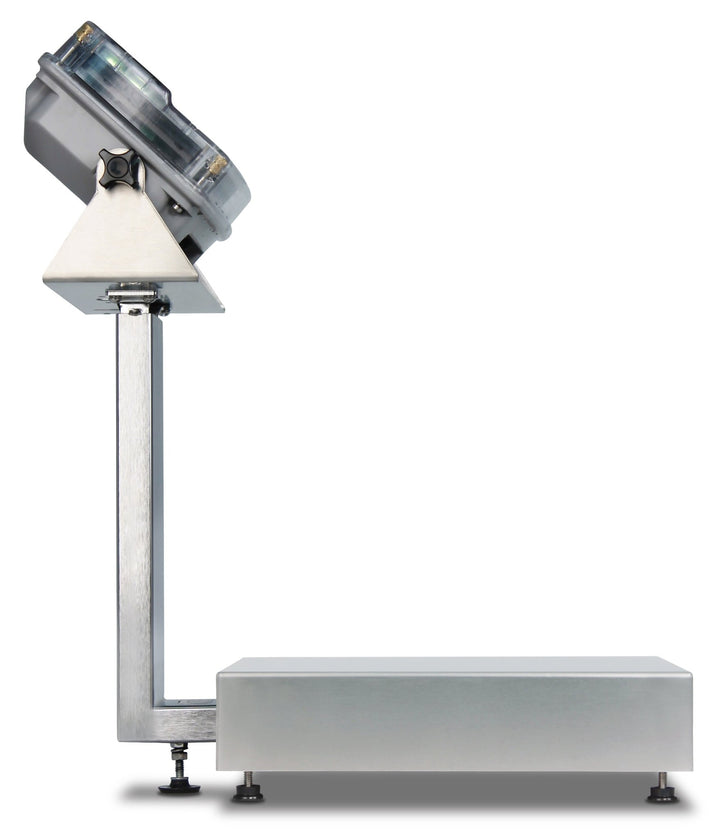

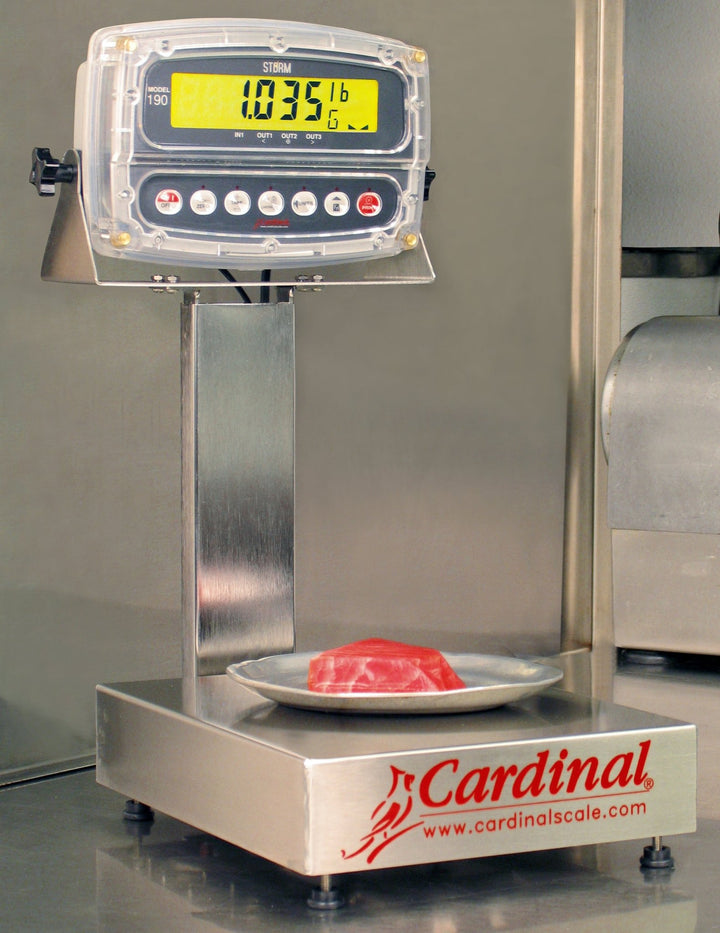

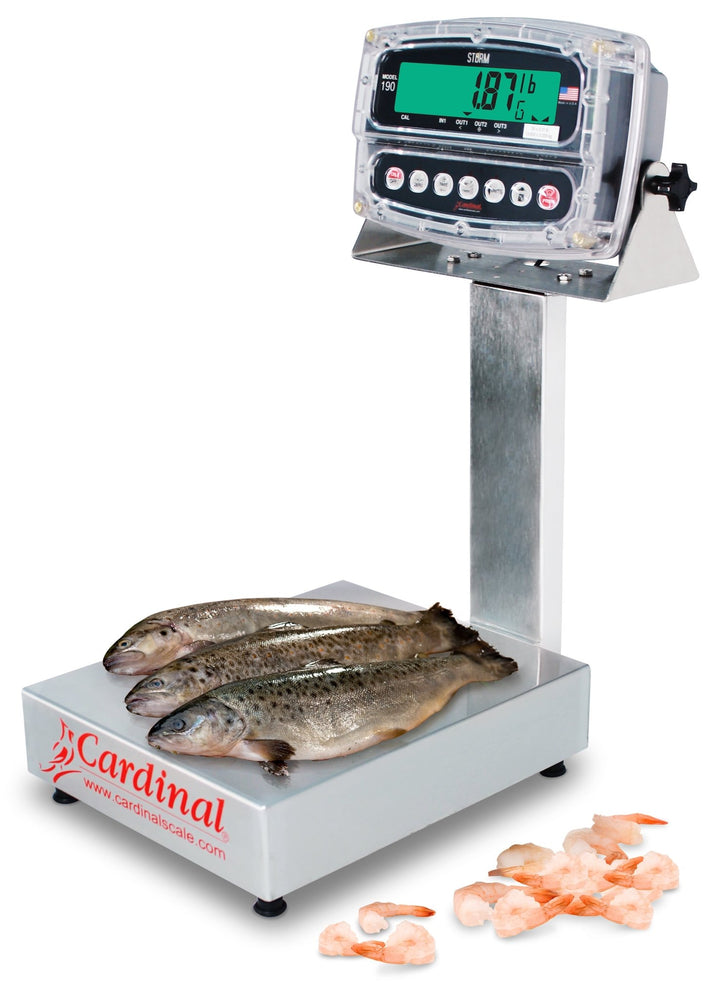

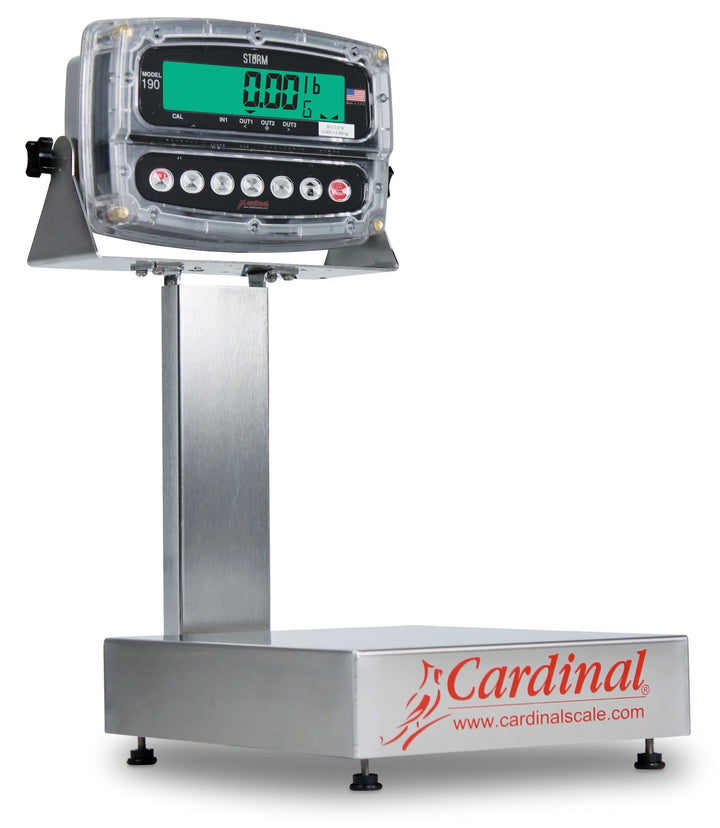

The Cardinal EB-190 Storm Bench Scale is a Legal for Trade, industrial-grade bench scale designed for durability and precision across demanding commercial environments. Built with a rugged stainless steel platform and Cardinal’s IP69K-rated polycarbonate 190 Storm indicator, it offers excellent protection against moisture, dust, and impacts. While not fully submersible or designed for direct high-pressure washdown, it is ideal for environments where occasional splashes, spills, or harsh handling are expected.
This model is NTEP certified and features advanced checkweighing functionality with color-coded visual alerts (ColorZONE), capacitive touch keys that remain responsive even through gloves, and a bright 1-inch LCD display for fast, error-free readings. Capacities range from 15 lb to 300 lb, with multiple platform sizes available to suit a wide range of industrial and commercial applications.
Ideal For
– Food processing and packaging lines (dry/wet zones)
– Pharmaceutical and cleanroom environments
– Chemical and recycling operations
– Commercial and warehouse shipping stations
– Industrial QC and batching areas
Features
- All-stainless steel construction ensures washdown durability and food-grade compliance
- IP69K-rated splashproof 190 Indicator with color-coded keypad and high-visibility LCD
- Legal for Trade (NTEP 03-031) - suitable for commercial transactions
- Wide capacity range: 15 lb to 300 lb
- Supports Pounds, Kilograms, Grams, and Ounces
- Ultra-fast 1-100 samples/sec rate for real-time responsiveness
- Includes standard RS232 communication for printer or software connectivity
- Battery-operated option with long runtime and backlight settings
- Seven-key capacitive touch keypad with intuitive operation
- Ideal for food processing, chemical weighing, and industrial washdown environments
Technical Specifications
| Capacities Available |
15, 30, 60, 150, or 300 lb |
| Platform Sizes |
12" x 10", 16" x 14", 24" x 20" |
| Deck Material |
Stainless Steel |
| Indicator |
190, IP69K-rated, 6-digit LCD with backlight |
| Power |
100-240 VAC or optional BP190 lithium battery |
| Legal for Trade |
Yes (NTEP CC 03-031) |
| Connectivity |
RS232 bi-directional port |
| Sample Rate |
1-100 samples/sec, selectable |
| Operating Temperature |
14 °F to 104 °F (-10 °C to +40 °C) |
| Resolution |
1 part in 16,777,216 |
