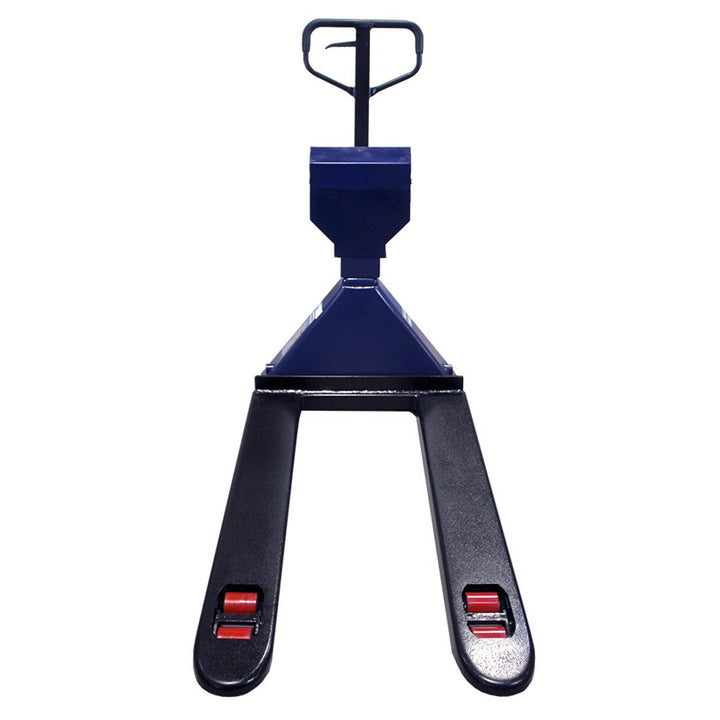

The Adam Equipment PTT 5000a Pallet Jack Scale is the all-in-one solution for businesses that need to weigh, transport, and label pallets in a single step. With a 5000 lb capacity and 1 lb graduation, this heavy-duty pallet jack scale provides the accuracy required for shipping verification, inventory control, and production workflows. By eliminating the need for a separate floor scale, the PTT saves time, reduces handling, and improves efficiency in warehouses, shipping departments, and production floors.
Unlike standard pallet truck scales, the PTT 5000a includes a built-in label printer, making it ideal for businesses that require on-the-spot labeling with barcodes or QR codes. Operators can quickly weigh pallets and generate labels without leaving the work area. A rugged steel frame, sealed keypad, and smooth-rolling swivel wheels ensure the scale performs reliably in industrial environments. With advanced functions like accumulation, checkweighing with alarms, and parts counting, the PTT 5000a goes beyond basic weighing to deliver a full-featured pallet weighing solution.
- 5000 lb x 1 lb graduation ensures accuracy for shipping, production, and inventory
- Combines a manual pallet jack with scale and printer for all-in-one functionality
- Built-in printer generates labels, barcodes, and QR codes in multiple languages
- Bright backlit LCD (1.3” digits) with color-coded keys for fast operation
- Multiple weighing applications: accumulation, checkweighing, percentage weighing, parts counting, animal/dynamic weighing
- RS-232 interface for connecting to PCs, printers, and data systems
- Rechargeable battery and AC adapter for continuous uptime
- Rugged steel construction with ABS housing, sealed keypad, and swivel wheels
- Designed for warehouses, shipping docks, and production floors needing reliable scale for pallets
Technical Specifications
| Specification |
Details |
| Model |
PTT 5000a |
| Maximum Capacity |
5000 lb / 2000 kg |
| Readability (Graduation) |
1 lb / 0.5 kg |
| Repeatability (S.D.) |
2 lb / 1 kg |
| Linearity |
±1 kg |
| Fork Size |
45 x 6 in / 1150 x 160 mm |
| Overall Dimensions (W x D x H) |
22 x 60 x 46 in / 550 x 1525 x 1175 mm |
| Net Weight |
275.5 lb / 125 kg |
| Shipping Weight |
319.9 lb / 145.15 kg |
| Stabilization Time |
2 seconds |
| Operating Temperature |
14°F to 104°F / -10°C to 40°C |
| Weighing Units |
g, kg, ct, lb, oz, dr, mm, T, tonne |
| Display |
Backlit LCD, 1.3 in (34 mm) digits |
| Power Supply |
12VDC 3A adapter / Internal rechargeable battery |
| Housing |
Mild steel base with ABS plastic |
| Interface |
RS-232 |
| Calibration |
External calibration |
| Construction |
Rugged steel pallet forks, sealed keypad, polyurethane wheels |
| Functions |
Weighing, Parts Counting, Percentage Weighing, Checkweighing (with alarm), Dynamic/Animal Weighing, Accumulation, Display Hold, Peak Hold, Barcode/Label Printing |
Add Ons
Calibration Certificate (SKU 700660289, $180.00)
Essential for compliance and peace of mind. This official certificate provides traceable documentation of accuracy — a common requirement in industries such as food, pharmaceuticals, and logistics. Ensure your scale is audit-ready and avoid costly downtime or rejected shipments.
In-use Wet Cover (SKU 3102311619, $30.00)
Protect your investment with a simple, low-cost cover that shields the indicator from dust, moisture, and spills. Extends the lifespan of your scale in busy industrial environments and reduces maintenance costs over time.
Labels – 800 per Roll (SKU 400005615, $18.00)
Keep operations running smoothly with replacement label rolls for the PTT’s built-in printer. Perfect for shipping, inventory management, and traceability.
Requirement: These labels can only be used with the built-in printer model (already included in all PTT 5000a units).
RS-232 Cable / Adaptor (SKU 700400103, $55.00)
Unlock data connectivity. This cable lets you connect the scale to PCs or external printers for automated recordkeeping and reporting. A must-have for businesses aiming to streamline workflows and eliminate manual data entry errors.
Requirement: The device you connect to must have an RS-232 port or be paired with the RS-232 to USB adapter.
AdamDU Data Collection Program (SKU 600002028, $95.00)
Take control of your weighing data. AdamDU software makes it easy to capture results directly into your computer, generate reports, and export to Excel or other systems. Perfect for businesses needing reliable documentation, quality control, and compliance reporting.
Requirement: AdamDU requires an RS-232 connection. You’ll also need the RS-232 cable, and the RS-232 to USB adapter if your PC only has USB ports.
RS-232 to USB Adapter (SKU 3074010507, $55.00)
Future-proof your connectivity. This adapter bridges RS-232 output to modern USB-only computers, ensuring your scale remains compatible with today’s IT hardware. Reliable and easy to set up, it keeps your system flexible as technology changes.
Requirement: Must be used in combination with the RS-232 cable.
Shipping & Delivery
LTL Freight Shipping
Delivery Method
This product is shipped by Less-Than-Truckload (LTL) freight because it is too large or heavy to be shipped by standard parcel carriers such as UPS or FedEx. LTL freight shipments are delivered by professional freight carriers.
Processing Time
All orders are processed within 1–2 business days before being released to the carrier. You will receive tracking information as soon as your order ships.
Delivery Timeframe
Transit times for freight shipments are typically within 1–15 business days, depending on your location, carrier schedules, and regional variations. This timeframe accounts for possible delays caused by weather, carrier availability, or delivery to more remote areas.
Delivery Options
- Dock Delivery
Dock delivery is the correct choice if your business has a loading dock or forklift available. For example, warehouses, distribution centers, and manufacturing facilities that regularly receive palletized shipments would use dock delivery. This is generally the most efficient and cost-effective option.
- Liftgate Delivery
Liftgate delivery is required if your location does not have a loading dock or forklift. The truck will be equipped with a hydraulic lift that lowers the pallet safely to the ground. For example, if your delivery address is a retail storefront, veterinary clinic, or residential area without unloading equipment, you should select liftgate delivery. This option ensures that your shipment can be safely unloaded at your location.
Choosing the correct option at checkout is essential to avoid delays and to make sure the carrier can deliver your order smoothly. If you are unsure which option applies to you, please contact us before placing your order.
Shipping Charges
The exact shipping charge for this product will be displayed at checkout before you complete your purchase. The amount may differ depending on whether you select dock delivery or liftgate delivery.
Company-Wide Policy
This page provides shipping and delivery information specific to this product. For our company-wide Shipping & Delivery Policy, please see the link located in the footer of our website.
Questions
If you are uncertain which delivery method is right for your location, or if you have any other questions, we are here to help. Please contact us at sales@titanscaleusa.com or call us at +1 307 441 3420.
If you have any questions about shipping or delivery for Adam Equipment products, you are welcome to contact us directly:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Returns
Most Adam Equipment products are eligible for return within 30 days of delivery, unless otherwise specified.
Returned items should be in new or lightly used condition, with all original packaging and accessories included.
Returns can generally be completed by mail or via an approved carrier. Specific instructions will be provided once your return request is initiated.
In most cases, Titan Scale USA covers the cost of return shipping. Customers may need to arrange shipment and generate a return label unless otherwise stated.
Adam Equipment returns are typically not subject to restocking fees unless otherwise noted.
Refunds are usually processed within 3 business days after inspection of the returned item. Exchanges may be arranged under the same conditions as returns.
To begin a return or exchange for an Adam Equipment product, please contact our Customer Support Team with your order number and details of your request. We will provide clear instructions for the next steps.
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Warranty
Adam Equipment warranties cover defects in materials and workmanship, starting from the date of dispatch. Coverage includes parts and labor for eligible repairs.
Warranty periods by product range:
- Five years: Equinox, Solis, Luna, Nimbus balances, PMB moisture analyzers, anti-vibration tables, AGB/AGF bench & floor scales, Cruiser CCT/CDT/CKT, GBC/GFC counting scales, GBK/GFK checkweighing scales, Gladiator waterproof scales, GB/GF platforms, GC indicators.
- Three years: Aqua ABW washdown scales, BCT/BKT label-printing scales, CPWplus, Highland HCB balances, Latitude LBX, Swift SWZ retail scales, MDW physician scales, MTB baby/toddler scales, AE403 indicators, PT/PTM platform scales, AELP pallet beam scales.
- Two years: SHS, LHS, IHS crane scales, AE503/AE504 indicators, Dune DCT, CBX/CB balances, and PTSplus/PTT pallet truck scales.
Exclusions: normal wear and tear, accidental damage, misuse, neglect, improper installation, unauthorized repairs, consumables, accessories, or non-Adam manufactured parts. Warranty is valid only if the product has been paid in full and used under normal working conditions.
Products must be returned in suitable packaging with the correct claim documentation. Customers are responsible for shipping the product to an Adam service center. Adam will cover the cost of return shipping for items repaired or replaced under warranty.
For warranty claims, register your product on Adam Equipment’s website and contact your local service center or Titan Scale USA:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Manuals
ADAM EQUIPMENT PTT PALLET TRUCK SCALE 5000a - MANUAL (PDF)
