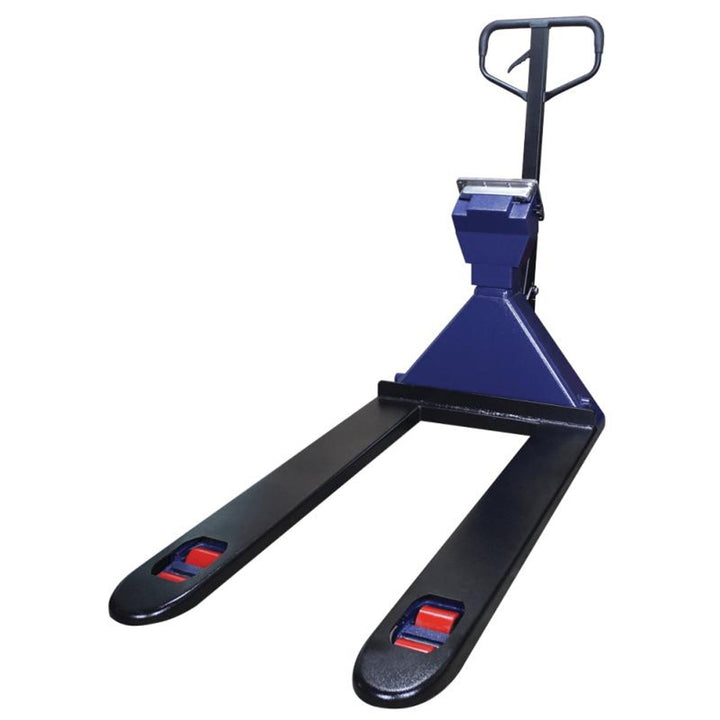

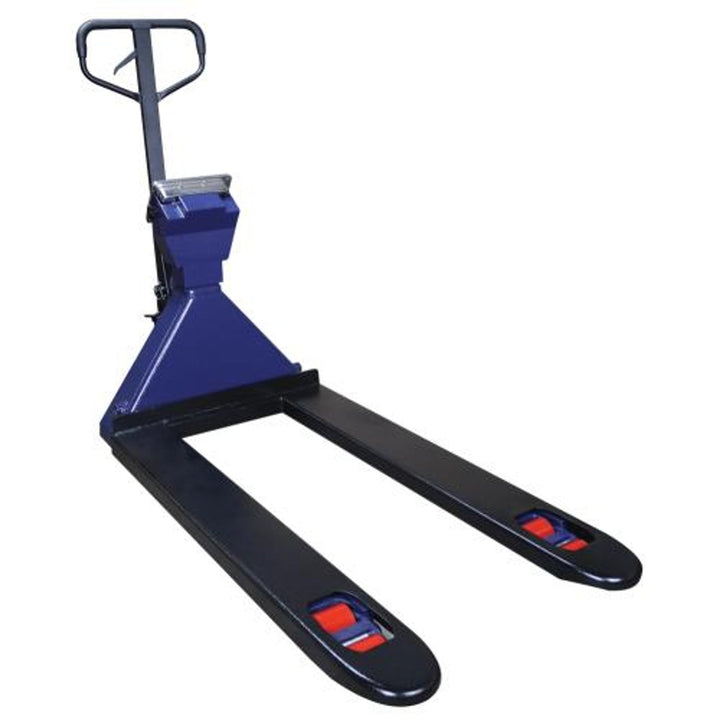

The Adam Equipment PTSplus 5000a Pallet Truck Scale is built for businesses that need to weigh and move pallets in one step, saving time and reducing costly double-handling. With a 5000 lb capacity and 1 lb graduation, it delivers the accuracy industrial buyers demand for shipping verification, production control, and warehouse inventory management. Operators can transport loads quickly while capturing precise weight data — eliminating the need for separate scales and boosting overall efficiency.
Designed for demanding environments, the PTSplus features an IP67-rated indicator, RS-232 data connectivity, and a rechargeable battery for continuous uptime. Its rugged steel forks, polyurethane wheels, and zero-radius handle provide durability and maneuverability, while advanced functions like checkweighing with audible alarms, percentage weighing, and dynamic/animal weighing give you the flexibility to handle a wide range of weighing tasks with confidence.
- Cut handling time by weighing pallets during transport
- Legal-for-trade readability: 5000 lb x 1 lb graduation ensures compliance and accuracy
- Heavy-duty steel construction built for industrial use
- IP67-rated indicator resists dust and water for reliable performance
- RS-232 interface connects to printers, software, or data systems
- Rechargeable battery supports all-day use without downtime

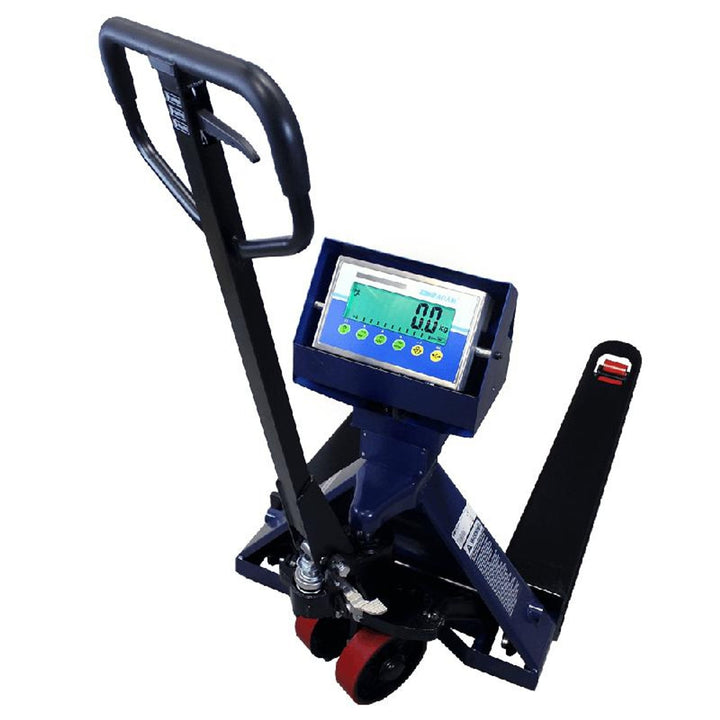

- Backlit LCD with capacity tracker and color-coded keys for fast operation
- Checkweighing with alarms for streamlined quality control
- External calibration keeps the scale accurate over time
- Trusted by warehouses, shipping departments, and production floors for precise, efficient weighing
Technical Specifications
| **Attribute** | **Value** |
|-------------------------------|---------------------------------------------------------------------------|
| Model | PTSplus 5000a |
| Capacity | 5000 lb / 2000 kg |
| Readability | 1 lb / 0.5 kg |
| Repeatability | 2 lb / 1 kg |
| Linearity | ±1 kg |
| Fork Length | 48 in / 1220 mm |
| Fork Width (each) | 6.3 in / 160 mm |
| Total Fork Width | 26.8 in / 680 mm |
| Fork Height | 3 – 7.5 in (77 – 192 mm) |
| Dimensions (W×D×H) | 22 × 60 × 46 in / 550 × 1525 × 1175 mm |
| Net Weight | 276–297 lb (125–135 kg) |
| Shipping Weight | 370 lb / 168 kg |
| Stabilization Time | 2 sec |
| Operating Temp | 14°F–104°F / -10°C–40°C |
| Weighing Units | lb, kg, lb:oz |
| Indicator | IP67-rated, splash-proof |
| Display | Backlit LCD, 1.6 in (40 mm) digits |
| Power | Mains cable / rechargeable battery |
| Interface | RS-232 |
| Construction | Steel base, steel forks, PU wheels |
| Handle | Zero-radius pivot for easy use |
| Functions | Weighing, Parts, %, Check, Dynamic/Animal |
Add Ons
Calibration Certificate (SKU 700660289, $180.00)
Provides official, traceable accuracy documentation. Often required in regulated industries such as food, pharma, and logistics.
In-use Wet Cover (SKU 3102311619, $30.00)
Protects the indicator from dust, moisture, and spills, extending the scale’s lifespan at minimal cost.
RS-232 Cable (SKU 700400103, $55.00)
Enables direct connection to printers or PCs for automated data logging. Essential for digital recordkeeping.
AdamDU Data Collection Program (SKU 600002028, $95.00)
PC software for capturing and exporting scale data (CSV, HTML). Ideal for inventory management and compliance. Requires RS-232 cable (and USB adapter if connecting via USB).
RS-232 to USB Adapter (SKU 3074010507, $55.00)
Converts RS-232 output for use with modern USB-only computers. Requires RS-232 cable.
Labels – 800 per Roll (SKU 400005615, $18.00)
Replacement labels for integrated or external printers. Keeps warehouse and shipping operations running smoothly.
Shipping & Delivery
LTL Freight Shipping
Delivery Method
This product is shipped by Less-Than-Truckload (LTL) freight because it is too large or heavy to be shipped by standard parcel carriers such as UPS or FedEx. LTL freight shipments are delivered by professional freight carriers.
Processing Time
All orders are processed within 1–2 business days before being released to the carrier. You will receive tracking information as soon as your order ships.
Delivery Timeframe
Transit times for freight shipments are typically within 1–15 business days, depending on your location, carrier schedules, and regional variations. This timeframe accounts for possible delays caused by weather, carrier availability, or delivery to more remote areas.
Delivery Options
- Dock Delivery
Dock delivery is the correct choice if your business has a loading dock or forklift available. For example, warehouses, distribution centers, and manufacturing facilities that regularly receive palletized shipments would use dock delivery. This is generally the most efficient and cost-effective option.
- Liftgate Delivery
Liftgate delivery is required if your location does not have a loading dock or forklift. The truck will be equipped with a hydraulic lift that lowers the pallet safely to the ground. For example, if your delivery address is a retail storefront, veterinary clinic, or residential area without unloading equipment, you should select liftgate delivery. This option ensures that your shipment can be safely unloaded at your location.
Choosing the correct option at checkout is essential to avoid delays and to make sure the carrier can deliver your order smoothly. If you are unsure which option applies to you, please contact us before placing your order.
Shipping Charges
The exact shipping charge for this product will be displayed at checkout before you complete your purchase. The amount may differ depending on whether you select dock delivery or liftgate delivery.
Company-Wide Policy
This page provides shipping and delivery information specific to this product. For our company-wide Shipping & Delivery Policy, please see the link located in the footer of our website.
Questions
If you are uncertain which delivery method is right for your location, or if you have any other questions, we are here to help. Please contact us at sales@titanscaleusa.com or call us at +1 307 441 3420.
If you have any questions about shipping or delivery for Adam Equipment products, you are welcome to contact us directly:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Returns
Most Adam Equipment products are eligible for return within 30 days of delivery, unless otherwise specified.
Returned items should be in new or lightly used condition, with all original packaging and accessories included.
Returns can generally be completed by mail or via an approved carrier. Specific instructions will be provided once your return request is initiated.
In most cases, Titan Scale USA covers the cost of return shipping. Customers may need to arrange shipment and generate a return label unless otherwise stated.
Adam Equipment returns are typically not subject to restocking fees unless otherwise noted.
Refunds are usually processed within 3 business days after inspection of the returned item. Exchanges may be arranged under the same conditions as returns.
To begin a return or exchange for an Adam Equipment product, please contact our Customer Support Team with your order number and details of your request. We will provide clear instructions for the next steps.
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Warranty
Adam Equipment warranties cover defects in materials and workmanship, starting from the date of dispatch. Coverage includes parts and labor for eligible repairs.
Warranty periods by product range:
- Five years: Equinox, Solis, Luna, Nimbus balances, PMB moisture analyzers, anti-vibration tables, AGB/AGF bench & floor scales, Cruiser CCT/CDT/CKT, GBC/GFC counting scales, GBK/GFK checkweighing scales, Gladiator waterproof scales, GB/GF platforms, GC indicators.
- Three years: Aqua ABW washdown scales, BCT/BKT label-printing scales, CPWplus, Highland HCB balances, Latitude LBX, Swift SWZ retail scales, MDW physician scales, MTB baby/toddler scales, AE403 indicators, PT/PTM platform scales, AELP pallet beam scales.
- Two years: SHS, LHS, IHS crane scales, AE503/AE504 indicators, Dune DCT, CBX/CB balances, and PTSplus/PTT pallet truck scales.
Exclusions: normal wear and tear, accidental damage, misuse, neglect, improper installation, unauthorized repairs, consumables, accessories, or non-Adam manufactured parts. Warranty is valid only if the product has been paid in full and used under normal working conditions.
Products must be returned in suitable packaging with the correct claim documentation. Customers are responsible for shipping the product to an Adam service center. Adam will cover the cost of return shipping for items repaired or replaced under warranty.
For warranty claims, register your product on Adam Equipment’s website and contact your local service center or Titan Scale USA:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Manuals
ADAM EQUIPMENT PTS PLUS 5000a MANUAL
