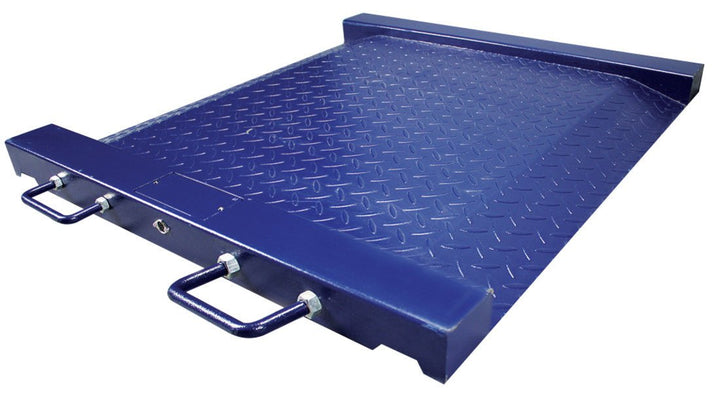

The **Adam Equipment PTM 500 Drum & Wheelchair Platform Scale – 1100 lb x 0.2 lb, Legal for Trade** is designed for smooth, accessible weighing of wheelchairs, drums, dollies, and other mobile loads. Its integrated ramps on both sides allow effortless entry and exit, while the rugged diamond-plate platform ensures safety and stability in demanding environments. Trusted in **hospitals, warehouses, shipping operations, and industrial sites**, the PTM 500 delivers accurate, Legal for Trade results where compliance matters most.
⚠️ **Important:** The PTM 500 **cannot be used on its own**. An **indicator is required for the scale to function**. Customers must either already own a compatible Adam indicator or select one of the available Add Ons (GK-S, GK Plus, or AE 403). Without an indicator, the scale will not display or record weights.
- 1100 lb x 0.2 lb Legal for Trade capacity
- Integrated ramps for wheelchair and drum access
- Diamond-plate steel platform ensures grip and stability
- **Requires an indicator (GK-S, GK Plus, or AE 403 sold separately)**
- Portable with built-in wheels and handles
- Rugged construction built for industrial and medical use
- Multiple weighing modes: parts counting, percentage, checkweighing, dynamic/animal
- 10 ft (3 m) load cell cable included
- Ideal for hospitals, warehouses, and shipping facilities
Technical Specifications
**Model**: PTM 500
**Capacity**: 1100 lb / 500 kg
**Readability (Graduation)**: 0.2 lb / 0.1 kg
**Repeatability (S.D.)**: 0.4 lb / 0.1 kg
**Linearity (+/-)**: 0.4 lb / 0.2 kg
**Platform Size**: 22.8" x 29.9" (580 x 760 mm)
**Overall Dimensions (W x D x H)**: 40.2" x 31.6" x 3" (1020 x 803 x 75 mm)
**Net Weight**: 78.2 lb (35.5 kg)
**Construction**: Mild steel base with diamond-plate surface
**Ramps**: Integrated ramps on both sides
**Feet**: Adjustable leveling feet with heavy-duty rubber bases
**Cable Length**: 10 ft (3 m) load cell cable
**Applications**: Weighing, parts counting, percentage weighing, checkweighing, dynamic/animal weighing
**Operating Temperature**: 14°F to 104°F (-10°C to 40°C)
**Note:** An **indicator is required** for operation. Compatible models include the GK-S, GK Plus, and AE 403 (sold separately).
Add Ons
⚠️ An **indicator is required** for this scale to function. Customers must either already own a compatible Adam indicator or purchase one from the options below.
- **GK-S Indicator** – versatile digital indicator with numeric tare entry and checkweighing functions.
- **GK Plus Indicator** – upgraded version of the GK-S, offering advanced checkweighing and additional functionality for demanding applications.

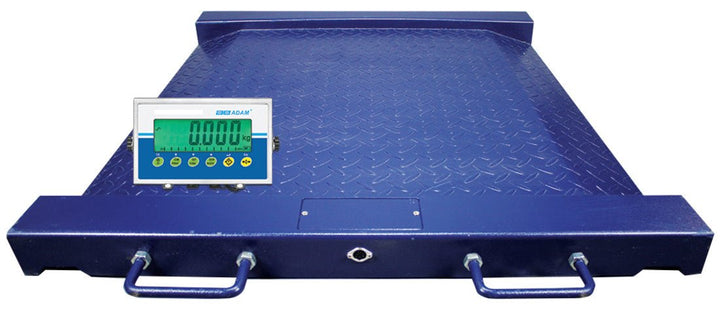

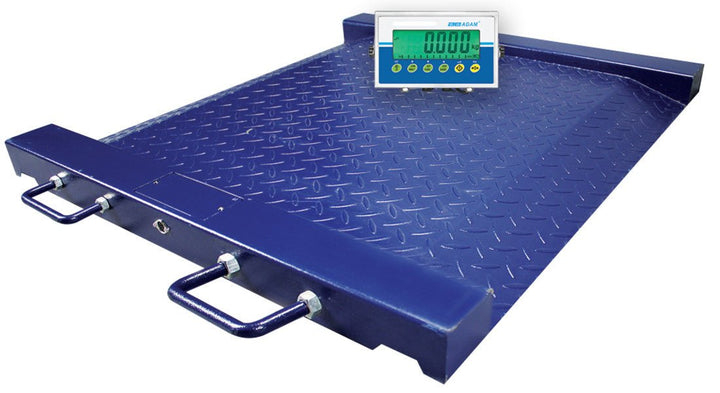

- **AE 403 Indicator** – IP67-rated waterproof stainless steel indicator, built for durability in harsh environments.
- **Calibration Certificate (700660289)** – traceable certificate to meet compliance requirements and verify accuracy.
- **RS-232 to USB Adapter (3074010507)** – enables quick and reliable connection between the scale and a PC or laptop.
- **Indicator Stand (2050013351)** – provides a stable mounting solution for positioning the indicator at a convenient height.
- **USB Cable A-B (3074010267)** – direct connection between the indicator and external devices for data transfer.
