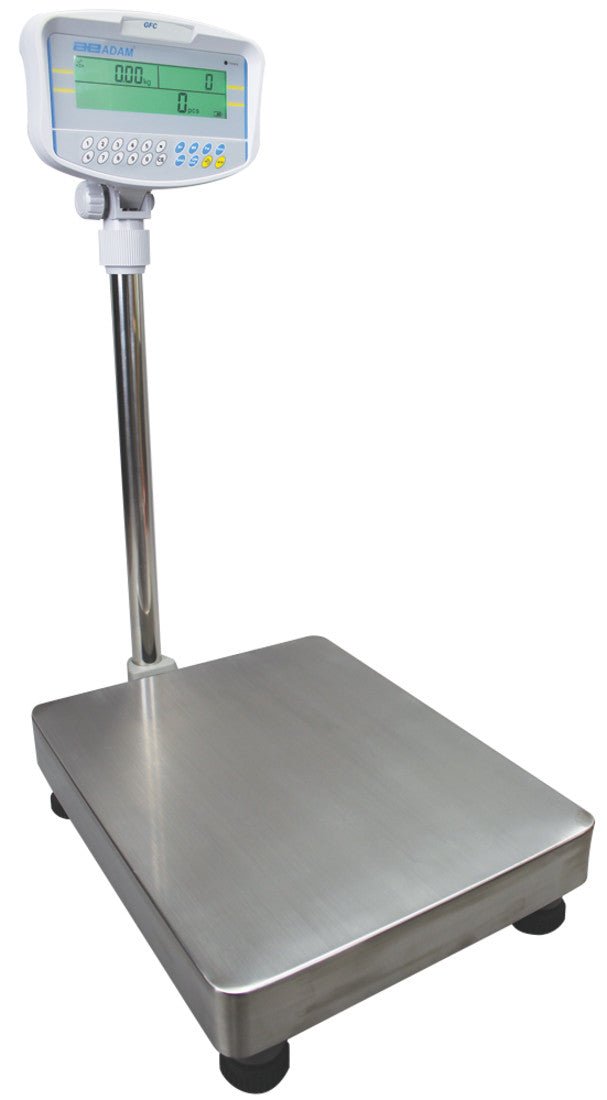

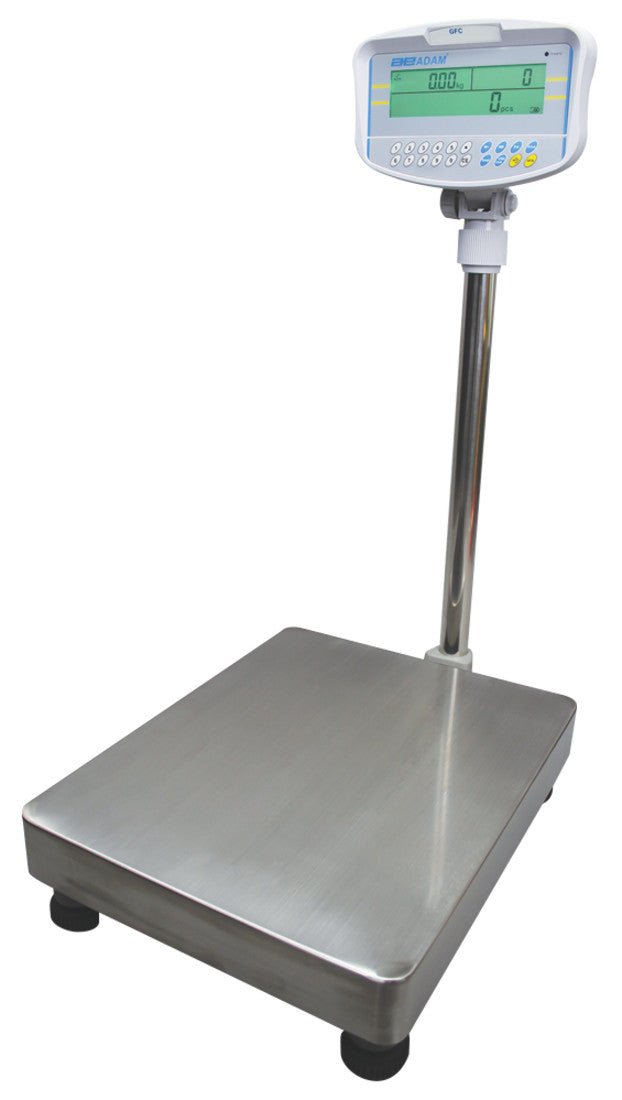

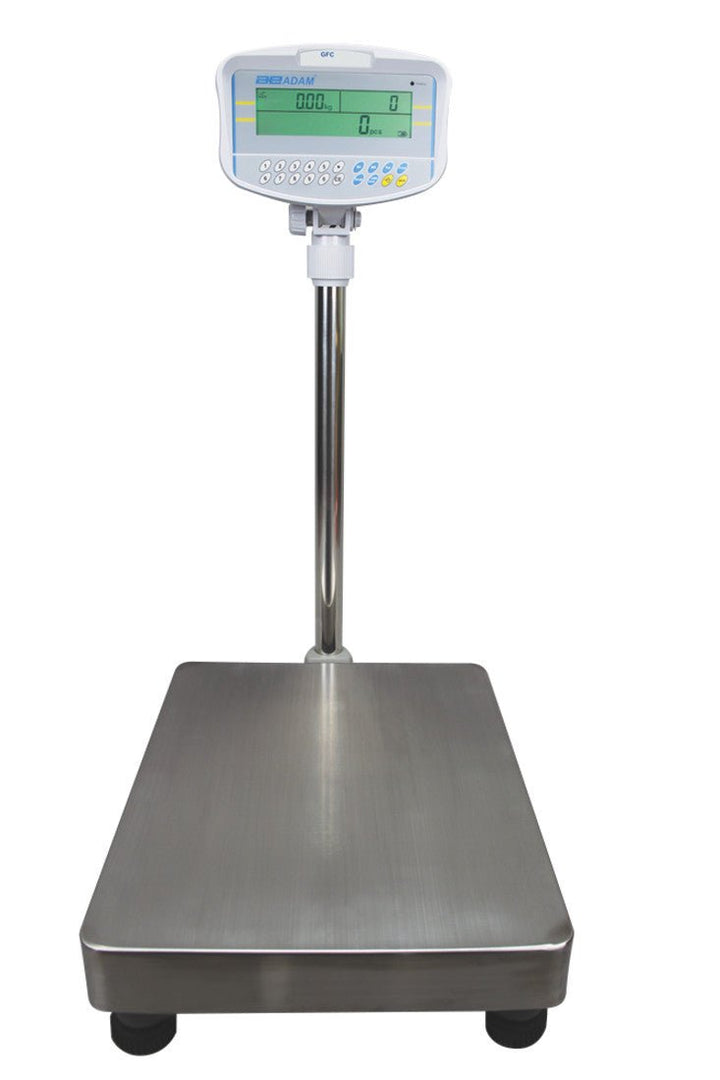

The Adam Equipment GFC Floor Counting Scale delivers reliable, heavy-duty performance for industrial parts counting and weighing. With capacities from 165 lb to 660 lb and graduations as fine as 0.01 lb, the GFC provides the precision needed for warehouses, production lines, and bulk inventory management. Its large stainless steel platform and durable die-cast base are built for heavy loads, while the pillar-mounted indicator with backlit display ensures easy visibility in any environment.
Designed for demanding applications, the GFC offers advanced counting functions, PLU memory for frequently used items, RS-232 connectivity, and optional USB integration. The built-in rechargeable battery enables mobile operation, making the GFC an ideal choice for versatile industrial settings.
- Capacities from 165 lb to 660 lb with graduations from 0.01 lb to 0.05 lb
- Large stainless steel platform with durable die-cast aluminum base
- Backlit LCD simultaneously displays weight, unit weight, and piece count
- Numeric keypad allows fast entry of sample sizes and unit weights
- PLU memory stores up to 100 items for quick recall
- RS-232 interface included; optional USB interface available
- Color-coded keys streamline frequent functions
- Programmable audible alarms for overload and check counting
- Built-in rechargeable battery and AC adaptor included
- External calibration simplifies verification with test weights
Technical Specifications
| Model |
GFC 165a |
GFC 330a |
GFC 660a |
| Maximum Capacity |
165 lb (75 kg) |
330 lb (150 kg) |
660 lb (300 kg) |
| Readability |
0.01 lb |
0.02 lb |
0.05 lb |
| Repeatability (S.D.) |
0.02 lb |
0.04 lb |
0.1 lb |
| Linearity (±) |
0.02 lb |
0.04 lb |
0.1 lb |
| Internal Counting Resolution |
1:600,000 |
1:600,000 |
1:600,000 |
| Pan Size |
15.7" × 19.7" (400 × 500 mm) |
15.7" × 19.7" (400 × 500 mm) |
15.7" × 19.7" (400 × 500 mm) |
| Stabilization Time |
2 seconds |
2 seconds |
2 seconds |
| Weighing Units |
lb, kg |
lb, kg |
lb, kg |
| Display |
Backlit LCD, 0.9" digits |
Backlit LCD, 0.9" digits |
Backlit LCD, 0.9" digits |
| Interface |
RS-232 standard; optional USB |
RS-232 standard; optional USB |
RS-232 standard; optional USB |
| Calibration |
External calibration |
External calibration |
External calibration |
| Power Supply |
12VDC 800mA adaptor; rechargeable battery |
12VDC 800mA adaptor; rechargeable battery |
12VDC 800mA adaptor; rechargeable battery |
| Operating Temperature |
14°F to 104°F (-10°C to 40°C) |
14°F to 104°F (-10°C to 40°C) |
14°F to 104°F (-10°C to 40°C) |
| Housing |
ABS indicator; die-cast aluminum base; stainless steel pan |
ABS indicator; die-cast aluminum base; stainless steel pan |
ABS indicator; die-cast aluminum base; stainless steel pan |
| Overall Dimensions |
15.7" × 23.6" × 32.3" (400 × 600 × 820 mm) |
15.7" × 23.6" × 32.3" (400 × 600 × 820 mm) |
15.7" × 23.6" × 32.3" (400 × 600 × 820 mm) |
| Net Weight |
37.5 lb (17 kg) |
37.5 lb (17 kg) |
37.5 lb (17 kg) |
| Applications |
Weighing, parts counting, check counting |
Weighing, parts counting, check counting |
Weighing, parts counting, check counting |
Add Ons
**Calibration certificate** Certified calibration document for audits
**USB port option (Type B)** USB port upgrade for better connectivity
**RS-232 cable 9M-9F** Standard RS-232 connectivity option
**USB cable A-B** Essential for USB-enabled connectivity
**In-use wet cover** Provides keypad/display protection from dust or spills
Shipping & Delivery
Standard Shipping (UPS/FedEx Ground)
Delivery Method
This product ships via UPS or FedEx Ground. These services are used for products that can safely be delivered by standard parcel carriers.
Order Processing
All standard shipping orders are processed and dispatched within 1–2 business days after payment is confirmed.
Delivery Timeframe
Delivery typically occurs within 1–10 business days.
Shipping Charges
The exact shipping charge for this product will always be shown at checkout before you confirm your order.
Tracking
Once your order has shipped, you will receive an email confirmation with tracking details so you can monitor your shipment in real time.
Important Notes
Standard shipping refers to transit time only and does not include the 1–2 business day order processing period. Products requiring calibration certificates or special preparation may need additional time for fulfillment.
Policy Reference
This information applies specifically to the product shown on this page. For a complete overview of shipping and delivery practices across all product categories, please refer to the company-wide Shipping & Delivery Policy available through the link in the website footer.
If you have any questions about shipping or delivery for Adam Equipment products, you are welcome to contact us directly:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Returns
Most Adam Equipment products are eligible for return within 30 days of delivery, unless otherwise specified.
Returned items should be in new or lightly used condition, with all original packaging and accessories included.
Returns can generally be completed by mail or via an approved carrier. Specific instructions will be provided once your return request is initiated.
In most cases, Titan Scale USA covers the cost of return shipping. Customers may need to arrange shipment and generate a return label unless otherwise stated.
Adam Equipment returns are typically not subject to restocking fees unless otherwise noted.
Refunds are usually processed within 3 business days after inspection of the returned item. Exchanges may be arranged under the same conditions as returns.
To begin a return or exchange for an Adam Equipment product, please contact our Customer Support Team with your order number and details of your request. We will provide clear instructions for the next steps.
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Warranty
Adam Equipment warranties cover defects in materials and workmanship, starting from the date of dispatch. Coverage includes parts and labor for eligible repairs.
Some Adam Equipment products are backed by a five year warranty. These include Equinox, Solis, Luna and Nimbus balances, PMB moisture analyzers, anti-vibration tables, AGB and AGF bench and floor scales, Cruiser CCT, CDT and CKT ranges, GBC and GFC counting scales, GBK and GFK checkweighing scales, Gladiator waterproof scales, GB and GF platforms, and GC indicators.
Other products are covered by a three year warranty. These include Aqua ABW washdown scales, BCT and BKT label-printing scales, CPWplus scales, Highland HCB balances, Latitude LBX scales, Swift SWZ retail scales, MDW physician scales, MTB baby and toddler scales, AE403 waterproof indicators, PT and PTM platform scales, and AELP pallet beam scales.
A smaller group of products carry a two year warranty. These include SHS, LHS and IHS crane scales, AE503 and AE504 indicators, Dune DCT compact balances, CBX and CB balances, and PTSplus and PTT pallet truck scales.
The warranty does not apply to normal wear and tear, accidental damage, misuse or neglect. It does not cover improper installation, unauthorized repairs or modifications, or damage caused by not following operating instructions. Consumables, accessories, and parts not manufactured by Adam Equipment are excluded. The warranty is valid only if the product has been paid for in full and used under normal working conditions.
Products must be returned in suitable packaging with the correct claim documentation. Customers are responsible for shipping the product to an Adam service center. Adam will cover the cost of return shipping for items that are repaired or replaced under warranty.
Customers should register their product on Adam Equipment’s Product Registration page after purchase. If a problem arises, first contact your local Adam service center, or reach out to Titan Scale USA directly at sales@titanscaleusa.com or by phone at +1 307 441 3420. If the issue cannot be resolved remotely, you may be asked to return the product for inspection. If the problem is found to be covered, Adam will repair or replace the item free of charge.
Adam Equipment reserves the right to repair, replace, or refund (in full or in part) at its discretion. This warranty is offered in addition to Titan Scale USA’s umbrella warranty policy, which applies across all brands we carry.
Manuals
GFC COUNTING SCALE MANUAL (PDF)
GFC COUNTING SCALE TECHNICAL SPECS (PDF)
