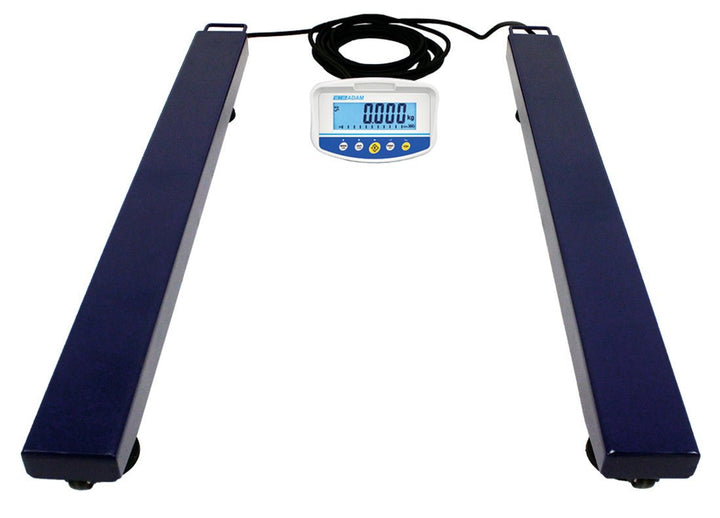

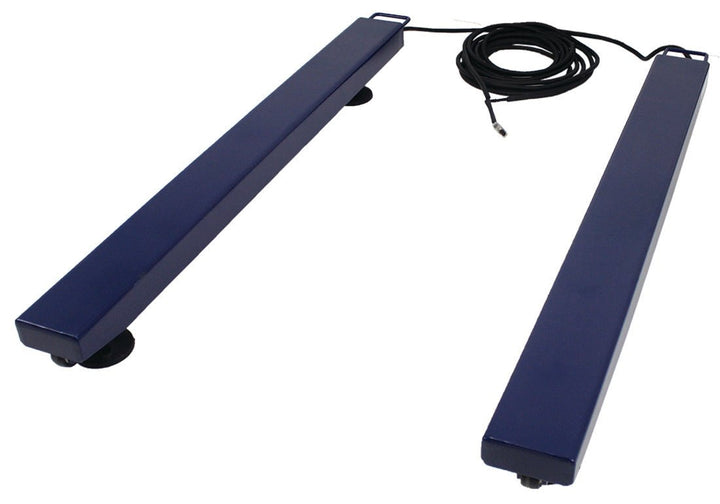

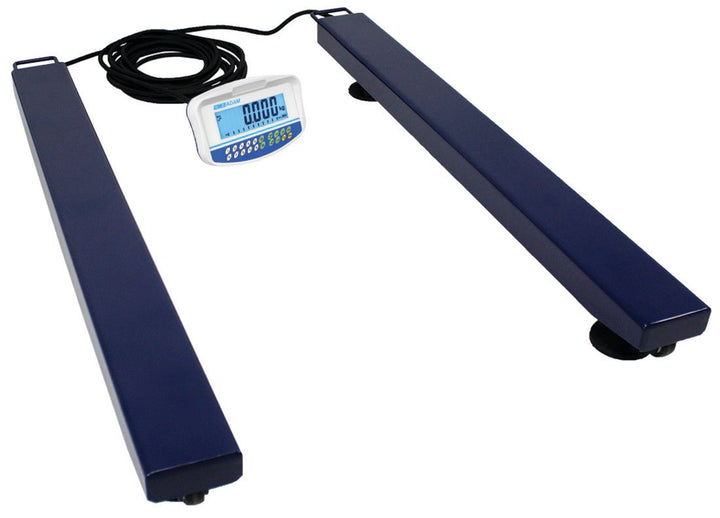

The Adam AELP Pallet Beam Scale is designed for businesses that need flexible, accurate pallet weighing without committing to a fixed floor scale installation. Whether in shipping, production, agriculture, or logistics, the AELP offers a rugged, portable alternative that can be deployed exactly where it’s needed. With models ranging from 2,200 lb to 6,600 lb capacity, the AELP handles everything from lightweight pallets to heavy-duty industrial loads.
Important: The AELP beams cannot be used on their own. They require a compatible indicator to function. If you do not already own one, you must purchase an indicator from the Add Ons section below. Choosing the right indicator is critical — entry-level models are ideal for simple weighing, while stainless steel or printer-equipped models support regulated industries, food processing, and compliance reporting.
- Portable beam design eliminates the need for a permanent floor scale, saving space and installation costs
- Integrated wheels and handles make relocation simple, ideal for multi-use facilities or outdoor weighing tasks
- Low-profile beams ensure safe and efficient pallet loading with trucks or forklifts
- Capacity range from 2,200 lb to 6,600 lb provides flexibility across light, medium, and heavy-duty operations
- 52" beam length accommodates standard pallets and bulky, irregular loads
- Compatible with multiple Adam indicators (GK-S, GK-Plus, AE402, AE503 and more), offering basic, washdown, or label-printing functionality
- OIML-approved load cells provide reliable, trade-quality accuracy
- Adam Connect compatibility enables wireless data transfer to PCs and printers for streamlined recordkeeping
- Supports advanced applications such as parts counting, percentage weighing, dynamic/animal weighing, and checkweighing
Technical Specifications
| Model Options |
AELP 1000, AELP 2000, AELP 3000 |
| Capacities |
2200 lb / 1000 kg, 4400 lb / 2000 kg, 6600 lb / 3000 kg |
| Readability |
0.5 lb / 0.2 kg (AELP 1000), 1 lb / 0.5 kg (AELP 2000), 2 lb / 1 kg (AELP 3000) |
| Beam Size |
52.4" x 4.7" / 1330 x 120 mm (each beam) |
| Overall Height |
3.3" / 85 mm |
| Construction |
Mild steel base with heavy-duty rubber feet |
| Portability |
Built-in wheels and handles for easy relocation |
| Load Cells |
4 x OIML-approved load cells |
| Cable Length |
15 ft / 5 m shielded cable (indicator to beams) |
| Operating Temperature |
14° to 104°F / -10° to 40°C |
| Applications |
Weighing, parts counting, percentage weighing, checkweighing, check counting, dynamic/animal weighing |
| Compatible Indicators |
GK-S, GK-Plus, AE402, AE503, and others |
| Net Weight |
70.5 lb / 32 kg (per set) |
Add Ons
These beams cannot function without a compatible indicator. If you do not already own one, you must select one of the options below.
Essential Indicators
- GK-S Indicator – Entry-level, cost-effective choice for general weighing. Large, easy-to-read display with weighing, counting, percentage weighing, and checkweighing functions. Best for warehouses, shipping, and agriculture.
- GK-Plus Checkweighing Indicator – Enhanced checkweighing performance with clear visual and audible alerts for under, within, or over target weights. Ideal for packaging, production lines, and quality control.
- AE402 Indicator – Rugged stainless steel, IP66-rated housing provides washdown protection for food processing, agriculture, or outdoor use where durability is critical.
- AE503 Indicator – Premium option with a built-in printer for labels and weight records. Perfect for logistics, regulated industries, and compliance-driven environments where documentation is required.
Optional Accessories
- Calibration Certificate (700660289) – Traceable certification that ensures your system meets industry and regulatory standards. Commonly required in food, pharma, and logistics operations.
- Indicator Stand (2050013351) – Keeps the indicator mounted securely at eye level for easier use in busy warehouses or mobile setups.
- USB Kit (2020011207) – Enables connection to a PC for data recording and analysis, supporting integration with digital workflows.
- RS-232 to USB Adapter (3074010507) – Allows older RS-232 indicators to connect to modern USB-only computers, extending the life of existing hardware.
Shipping & Delivery
LTL Freight Shipping
Delivery Method
This product is shipped by Less-Than-Truckload (LTL) freight because it is too large or heavy to be shipped by standard parcel carriers such as UPS or FedEx. LTL freight shipments are delivered by professional freight carriers.
Processing Time
All orders are processed within 1–2 business days before being released to the carrier. You will receive tracking information as soon as your order ships.
Delivery Timeframe
Transit times for freight shipments are typically within 1–15 business days, depending on your location, carrier schedules, and regional variations. This timeframe accounts for possible delays caused by weather, carrier availability, or delivery to more remote areas.
Delivery Options
- Dock Delivery
Dock delivery is the correct choice if your business has a loading dock or forklift available. For example, warehouses, distribution centers, and manufacturing facilities that regularly receive palletized shipments would use dock delivery. This is generally the most efficient and cost-effective option.
- Liftgate Delivery
Liftgate delivery is required if your location does not have a loading dock or forklift. The truck will be equipped with a hydraulic lift that lowers the pallet safely to the ground. For example, if your delivery address is a retail storefront, veterinary clinic, or residential area without unloading equipment, you should select liftgate delivery. This option ensures that your shipment can be safely unloaded at your location.
Choosing the correct option at checkout is essential to avoid delays and to make sure the carrier can deliver your order smoothly. If you are unsure which option applies to you, please contact us before placing your order.
Shipping Charges
The exact shipping charge for this product will be displayed at checkout before you complete your purchase. The amount may differ depending on whether you select dock delivery or liftgate delivery.
Company-Wide Policy
This page provides shipping and delivery information specific to this product. For our company-wide Shipping & Delivery Policy, please see the link located in the footer of our website.
Questions
If you are uncertain which delivery method is right for your location, or if you have any other questions, we are here to help. Please contact us at sales@titanscaleusa.com or call us at +1 307 441 3420.
If you have any questions about shipping or delivery for Adam Equipment products, you are welcome to contact us directly:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Returns
Please note: Titan Scale USA maintains a company-wide Returns & Exchange Policy, which you can always review in full by following the link in the footer of our website.
The information below is a summary of that umbrella policy and applies specifically to Adam Equipment products.
Return Timeframe
Most Adam Equipment products are eligible for return within 30 days of delivery, unless otherwise specified.
Condition of Returned Items
Returned items should be in new or lightly used condition, with all original packaging and accessories included.
Return Methods
Returns can generally be completed by mail or via an approved carrier. Specific instructions will be provided once your return request is initiated.
Return Shipping Costs
In most cases, Titan Scale USA covers the cost of return shipping. Customers may need to arrange shipment and generate a return label unless otherwise stated.
Restocking Fees
Adam Equipment returns are typically not subject to restocking fees unless otherwise noted.
Refunds & Exchanges
Refunds are usually processed within 3 business days after inspection of the returned item. Exchanges may be arranged under the same conditions as returns.
How to Start a Return
To begin a return or exchange for an Adam Equipment product, please contact our Customer Support Team with your order number and details of your request. We will provide clear instructions for the next steps.
Contact Us
If you have any questions about returns for Adam Equipment products, you are welcome to contact us directly:
Email: sales@titanscaleusa.com
Phone: +1 307 441 3420
Warranty
This policy is an extension of Titan Scale USA’s company-wide warranty framework, which you can read in full via the Warranty Policy link in the footer of our website. The details below apply specifically to Adam Equipment products.
Warranty Coverage
Adam Equipment warranties cover defects in materials and workmanship, starting from the date of dispatch. Coverage includes parts and labor for eligible repairs.
Warranty Periods by Product Range
Some Adam Equipment products are backed by a five year warranty. These include Equinox, Solis, Luna and Nimbus balances, PMB moisture analyzers, anti-vibration tables, AGB and AGF bench and floor scales, Cruiser CCT, CDT and CKT ranges, GBC and GFC counting scales, GBK and GFK checkweighing scales, Gladiator waterproof scales, GB and GF platforms, and GC indicators.
Other products are covered by a three year warranty. These include Aqua ABW washdown scales, BCT and BKT label-printing scales, CPWplus scales, Highland HCB balances, Latitude LBX scales, Swift SWZ retail scales, MDW physician scales, MTB baby and toddler scales, AE403 waterproof indicators, PT and PTM platform scales, and AELP pallet beam scales.
A smaller group of products carry a two year warranty. These include SHS, LHS and IHS crane scales, AE503 and AE504 indicators, Dune DCT compact balances, CBX and CB balances, and PTSplus and PTT pallet truck scales.
What Is Not Covered
The warranty does not apply to normal wear and tear, accidental damage, misuse or neglect. It does not cover improper installation, unauthorized repairs or modifications, or damage caused by not following operating instructions. Consumables, accessories, and parts not manufactured by Adam Equipment are excluded. The warranty is valid only if the product has been paid for in full and used under normal working conditions.
Customer Responsibilities
Products must be returned in suitable packaging with the correct claim documentation. Customers are responsible for shipping the product to an Adam service center. Adam will cover the cost of return shipping for items that are repaired or replaced under warranty.
How to Make a Claim
Customers should register their product on Adam Equipment’s Product Registration page after purchase. If a problem arises, first contact your local Adam service center, or reach out to Titan Scale USA directly at sales@titanscaleusa.com or by phone at +1 307 441 3420. If the issue cannot be resolved remotely, you may be asked to return the product for inspection. If the problem is found to be covered, Adam will repair or replace the item free of charge.
Final Notes
Adam Equipment reserves the right to repair, replace, or refund (in full or in part) at its discretion. This warranty is offered in addition to Titan Scale USA’s umbrella warranty policy, which applies across all brands we carry.
Manuals
AELP Pallet Beam - Manual (PDF)
