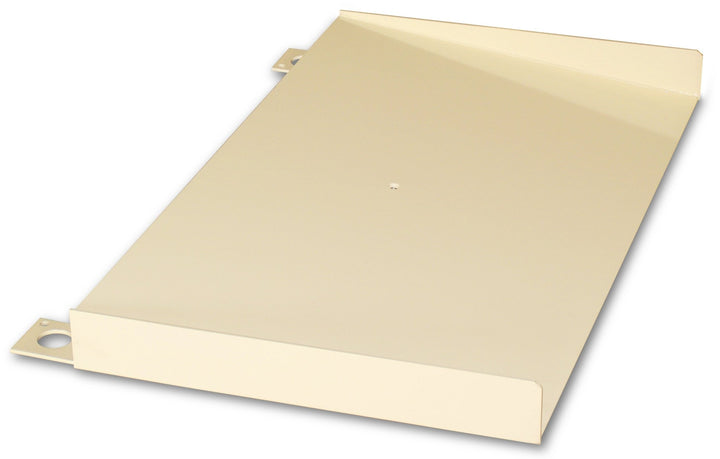

Cardinal Enforcer FH-II Floor Scale – Smooth Deck, 1,000 to 2,000 lb Capacity

The Cardinal Enforcer FH-II is a rugged industrial floor scale designed for accurate, repeatable weighing of carts, trolleys, and rolling bins in demanding environments. Its smooth deck and frameless, low-profile design make it especially well-suited to flush-floor or pit-mounted applications where seamless roll-on access is critical.

Manufactured in the USA and available in both mild and stainless steel, the FH-II Series is engineered for longevity and ease of use. Top-access self-leveling load cells, optional ramps, and a range of platform sizes and capacities ensure flexible integration across warehouses, laundries, and production facilities.

Key Features & Technical Details

• Frameless, low-profile deck ideal for pit installations or flush-mount applications



• Smooth 1/4-inch thick steel deck plate enables effortless roll-on access for carts and trolleys



• Self-leveling stainless steel load cells with top access for easy maintenance



• Capacities of 1,000 lb × 0.2 lb and 2,000 lb × 0.5 lb, NTEP non-certified



• Platform sizes available: 3x3 ft, 4x4 ft, and 5x5 ft



• Construction options: durable mild steel with baked-on tan polyester finish, or corrosion-resistant stainless steel



• Channel frame design provides structural rigidity and scale stability



• Forklift runners available for safe transport and relocation



• Optional accessories include ramps, pit frames, and Cardinal digital weight indicators

Technical Specifications

Shipping & Delivery

Orders are typically processed within 1–2 business days. Standard shipping timelines range from 5–10 business days depending on the destination and product configuration. For larger freight shipments, delivery times may vary slightly based on carrier availability and location. Tracking information will be provided as soon as your order ships.

If you have questions about delivery timeframes or need assistance selecting the right configuration for your needs, our team is always available to help — feel free to call us for advice or additional information.

Returns

This return policy applies specifically to products manufactured by Cardinal Scale and is an extension of our general Return Policy. Please review the Cardinal-specific terms below.

Step 1: Contact Titan Scale USA

All return requests for Cardinal products must begin by contacting Titan Scale USA. Please do not contact Cardinal Scale directly unless instructed.

To initiate a return, contact us at:

• Email: sales@titanscaleusa.com



Please include:

• Your original order number



• A brief explanation of the reason for return



• Photos if the item is damaged or defective



We will guide you through the next steps and coordinate with Cardinal Scale if a return is approved.

Return Authorization (RA)

If the return is approved, we will request a Return Authorization (RA) number from Cardinal Scale on your behalf. This RA number:

• Must be clearly written on the outside of the return packaging, or



• Affixed using the RA shipping label provided in the confirmation email



All returned items must:

• Be unused and in resellable condition (unless defective)



• Be securely packaged in the original packaging or equivalent protective packaging



Restocking Fees

• A 25% restocking fee applies to all non-defective returns



• A 10% restocking fee may apply if a re-order of greater value is placed at the time the RA is issued



• Items must be returned in good condition and appropriately packaged to qualify for the reduced fee



Additional Notes

• Returns made based on technical support recommendations are still subject to standard packaging and restocking requirements



• Whether an item qualifies as defective due to a manufacturing issue is determined solely by Cardinal Scale’s Quality Assurance team



For any questions or to begin a return, please contact Titan Scale USA using the details above.

Warranty

Cardinal Scale – Limited Manufacturer Warranty

At Titan Scale USA, we stand behind the quality of every product we sell. However, please note that warranty coverage is provided directly by the manufacturer, in this case Cardinal Scale Manufacturing Company, and is subject to their specific terms and conditions outlined below.

If you purchased a Cardinal Scale product from us, you are covered under Cardinal’s manufacturer warranty, not a Titan Scale USA warranty.

Warranty Overview

Cardinal Scale Manufacturing Company warrants its products against defects in materials and workmanship. Coverage terms vary depending on the product type.

Key Conditions of Warranty Coverage

This warranty applies only to the original purchaser of the product. The warranty period begins on the date of shipment from Cardinal Scale. Equipment must be installed and continuously maintained by an authorized Cardinal or Belt-Way dealer. It must also be properly grounded in accordance with Cardinal’s specifications.

The warranty becomes void if the equipment has been tampered with, defaced, or modified without Cardinal’s written approval, or if the serial number is missing, altered, or illegible.

Damage occurring during transit is not covered by the warranty. Claims for transit damage must be filed directly with the shipping carrier.

Warranty Coverage by Product Type

Hydraulic load cells include a lifetime limited warranty for damage caused by water, lightning, and voltage surges. This applies only to the hydraulic load cell structure itself and does not include pressure transducers, rubber seals, o-rings, or wiring. These load cells also carry a 10-year prorated warranty.

Scale structures are covered by a 1-year warranty.

Components constructed from stainless steel are covered under warranty.

Devices must be rated NEMA 4 or higher, or have an equivalent IP rating, to qualify for coverage.

For PSC models, warranty coverage applies only to agricultural installations on farms of up to 3,000 acres. LSC models are not subject to this acreage limitation.

Load cell kits must be installed in strict accordance with Cardinal Scale’s installation instructions. Failure to follow these instructions will void the warranty.

Warranty Exclusions

The following items and conditions are not covered under this warranty:

Consumables and expendable parts, or any product damage caused by abuse, improper voltage, overloading, theft, fire, water, prolonged storage or exposure while in the purchaser’s possession, or acts of God.

Peripheral equipment not manufactured by Cardinal is not covered. These items are typically covered by the original equipment manufacturer’s warranty.

Consequential damages, such as loss of profit, delays, or additional expenses, are not covered. Cardinal’s liability is limited to the specific terms of this warranty.

This warranty replaces all other express or implied warranties, including warranties of merchantability or fitness for a particular purpose. It applies only to products installed within the 48 contiguous United States and Canada.

Paint and surface coatings are excluded due to environmental variability.

Do not cut load cell cables before returning a product for warranty or credit, as doing so will void the warranty.

Software is warranted only for performing the functions described in the software manual or Cardinal’s proposal. The software warranty does not cover hardware. Any hardware-related coverage is provided by the hardware vendor.

The software warranty does not apply to integration issues involving third-party hardware.

Software upgrades are not included unless purchased separately.

Need Warranty Support?

If you purchased a Cardinal product from Titan Scale USA and need to request warranty assistance, please contact us first.

Email: sales@titanscaleusa.com

We’ll guide you through the process and help initiate your claim with Cardinal Scale.

Manuals

Cardinal Floor Scales General Guidebook (pdf)
